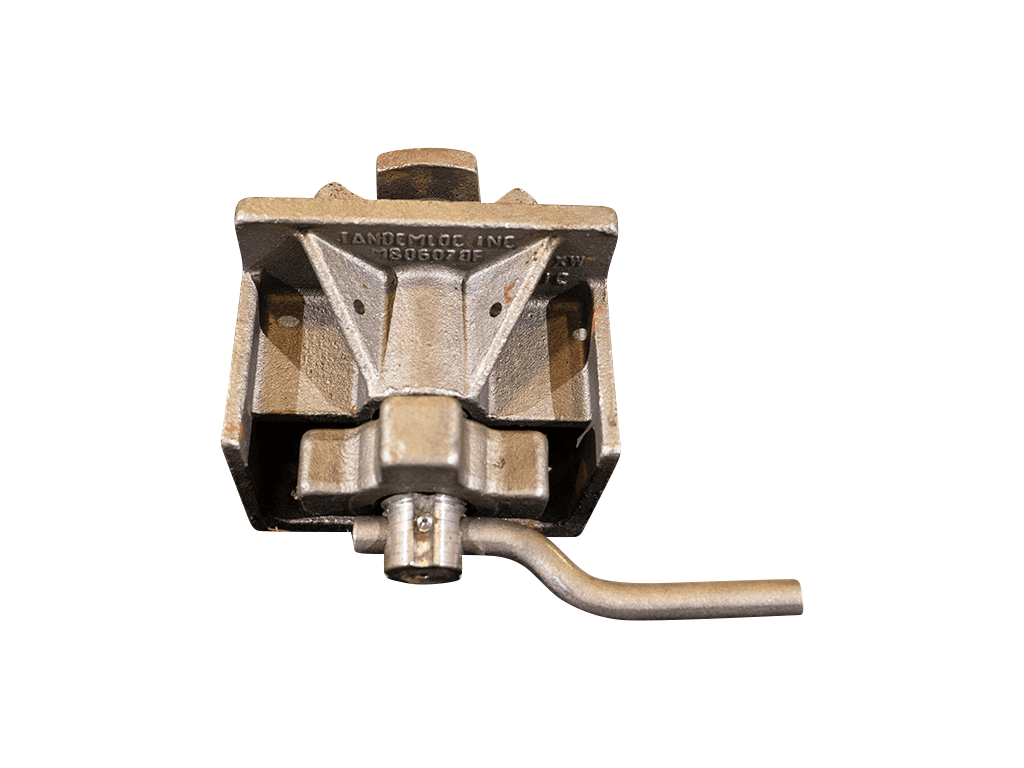

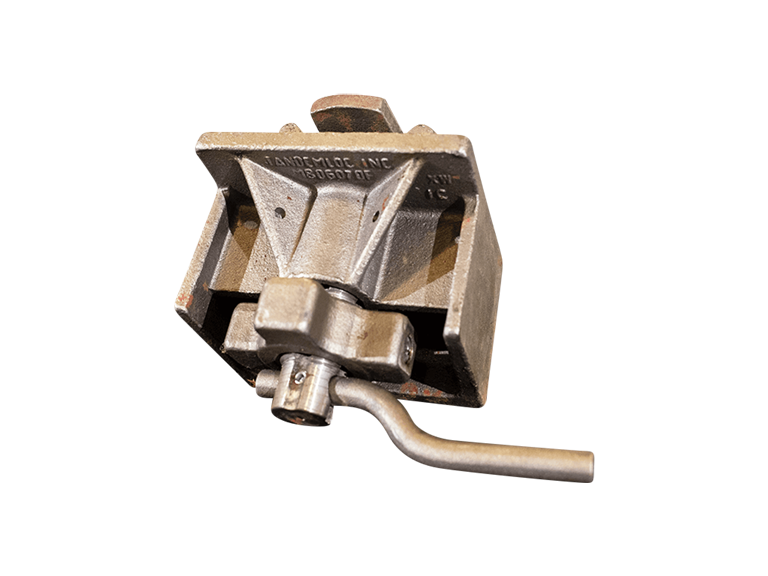

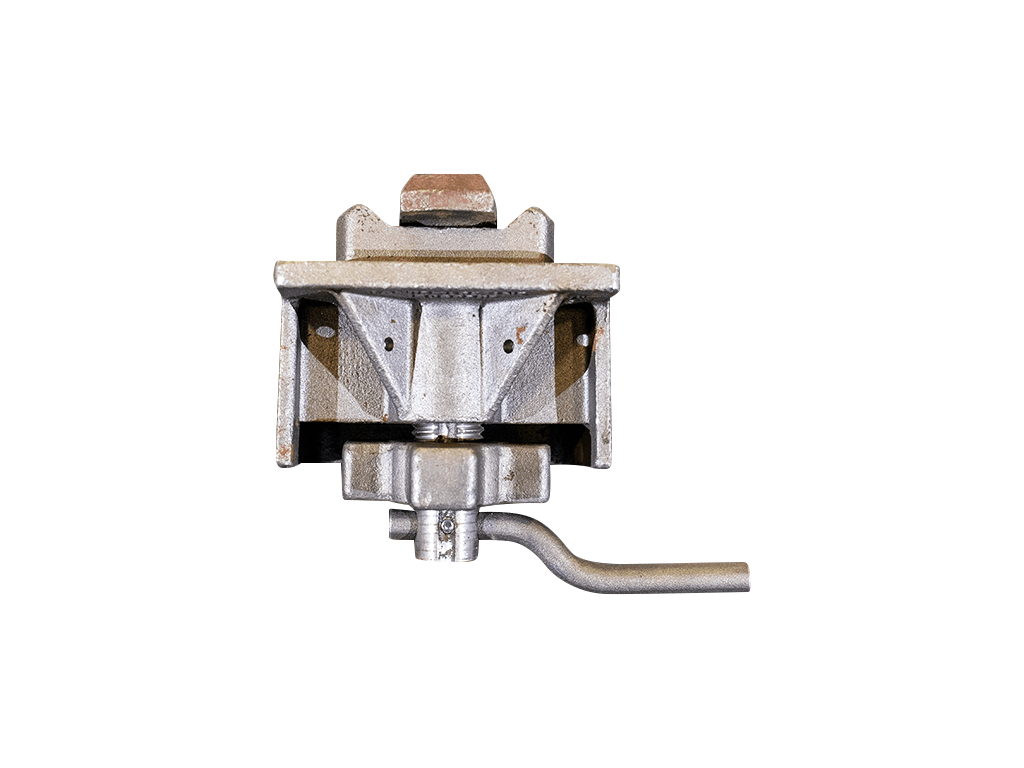

806000T-100 Trailoc

This Twistlock was developed for a specific military system known as PLS-CHU

It is designed to be welded to the end of a structure or frame. The 80600T-100 is a screw down Twistlock providing a firm slack free connection to the ISO corner fitting. The housing is low carbon steel and is weldable.

MATERIAL: Steel
WEIGHT: 23.1 LB.
FINISH: Self-Colored
STRENGTH RATINGS: Upward Restraint - 29,000 LB. Max. Load; 44,000 Avg. Ult.
REF. S06000Q for retractable non-screw-down type S80600S for non-retract Std. ISO screw-down type
Assembled part dimensions have tolerances up to ±.06 inches.
Locate connectors per "male fitting instructions" on Tandemloc Data Sheet DF-72047-16 (Sheet 2) for standard sized structures.

Please Register For Price Quote

We are now offering Job Shop Services

Do you need fabrication work done? We offer a complete complement of welding, machining and painting capabilities and invite your inquiry.

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

PC. NO.	QUANTITY	PART NO. AND DESCRIPTION
1	1	806070T-100 HOUSING, PLS-CHU TYPE, CAST & MACH.
2	1	806010F-200 BAYONET, MACHINED, SELF COLORED
3	1	T15094A-100 SPIN-LOC NUT, LARGE, STEEL
4	1	806080A-200 HANDLE, LONG, SELF COLORED
5	2	806150B-1ZN RETAINER SCREW W/ GREASE HOLE, STEEL, ZN PL
6	2	806PX12 SPRING, STAINLESS STL &LEELC-063G-2SS
7	2	806PX15 BALL ½"STAINLESS STL $WIEBALL500CRES
8	1	WIS003118000038 SET SCREW, CONE END .31-18UNC STL, ZN PL
9	.01 oz.	$LON262 Loctite 262 Permanent Thread Lock
10	1	$MPE.61-2.5IL56 Handle Grip, Orange Vinyl
