90401BA Series Corner Fitting Height Extenders

Corner Fitting Height Extenders

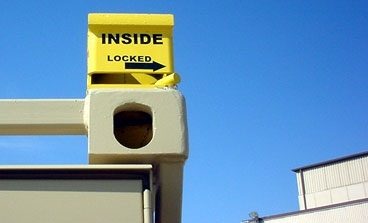

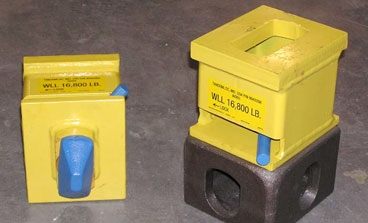

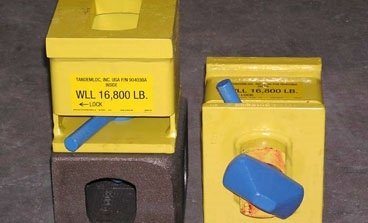

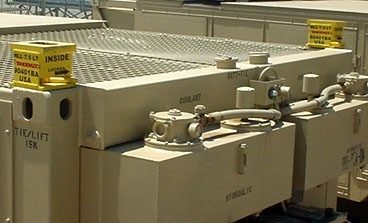

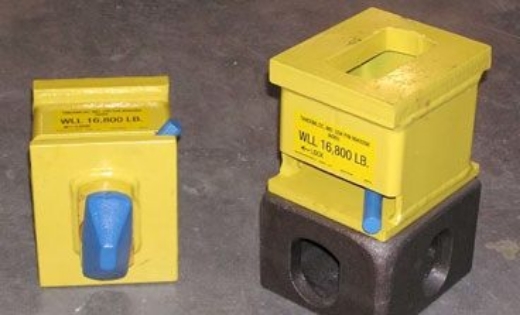

Height Extenders extend the height of the corner fitting compensating for projections above the container corner.

These Extenders are available in a variety of heights and are proof tested. Heights available from 6" to 60".

PROOF TESTED: Each assembly is proof-tested to two times work load limit (2 x WLL) and certified.
*NOTE: Uniform compression strength rating @ safety factor of 1.8 to ULT. is 118,000 LB. horizontal strength rating is in chart (L).
MATERIALS: Steel, painted yellow.
DIMENSIONS: Subject to manufacturing tolerances.
STANDARDS: Specification #EAD21000A applies.

Learn more about our paint process

Sales Drawing

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

Model	"H" ±0.13	Weight (lbs.)	Old Number	Max Horizontal Force	In Stock	Price*	Buy Online
90401BA-BPA Height Extenders	6 inches	31	-	12,000 lbs	No	--	Register For Quote
90401BA-CPA Height Extenders	10 inches	36	-	9,333 lbs	No	--	Register For Quote
90401BA-1PA Height Extenders	12 inches	40	79004-1A-12	8,000 lbs	No	--	Register For Quote
90401BA-APA Height Extenders	18 inches	49	79004-1A-18	5,333 lbs	No	--	Register For Quote
90401BA-2PA Height Extenders	24 inches	58	79004-1A-24	4,000 lbs	No	--	Register For Quote
90401BA-3PA Height Extenders	36 inches	67	79004-1A-36	2,667 lbs	No	--	Register For Quote
90401BA-4PA Height Extenders	48 inches	88	-	2,000 lbs	No	--	Register For Quote
90401BA-5PA Height Extenders	60 inches	115	97004-1A-60	1,667 lbs	No	--	Register For Quote

WLL	15,000 LBS
Description	Height Extenders "extend" the height of the corner fitting compensating for projections above the container corner

90401BA Series Height Extenders
