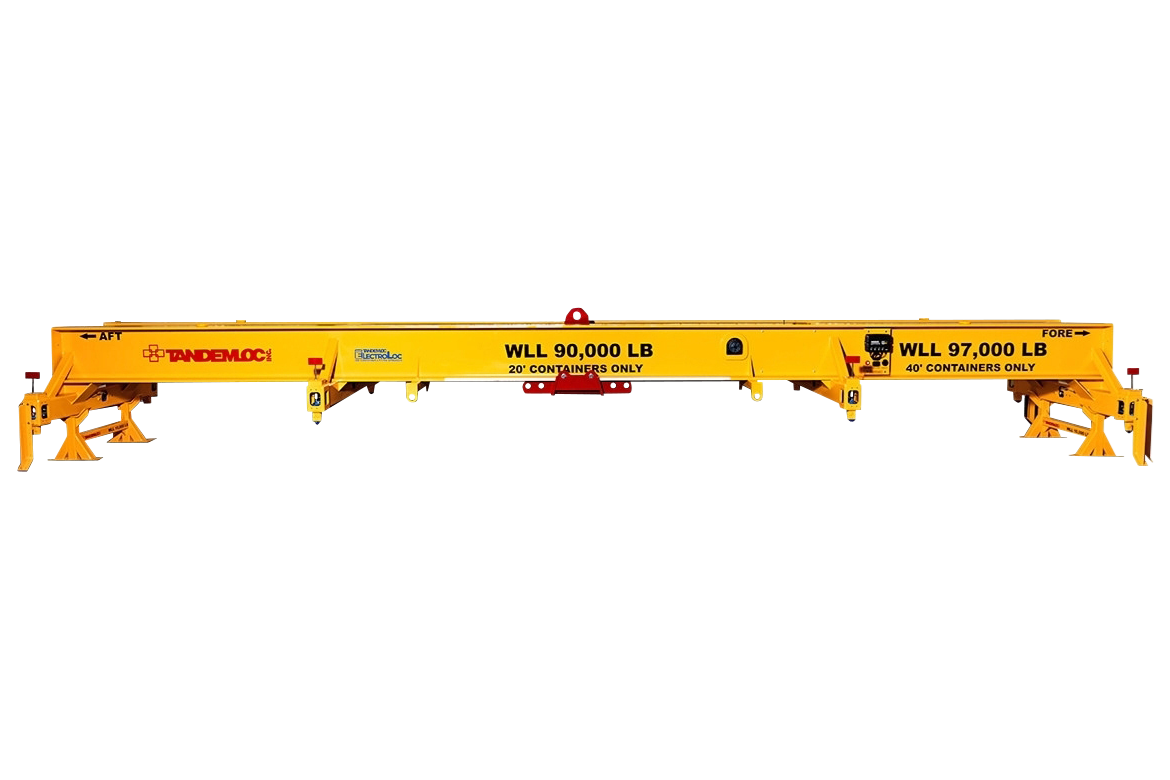

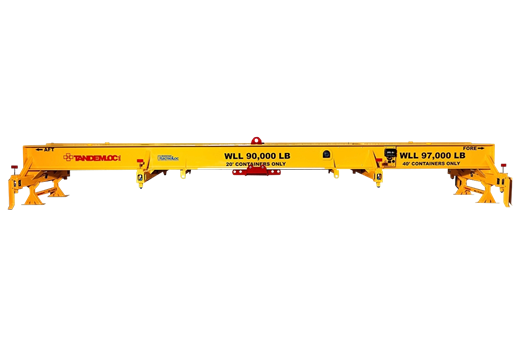

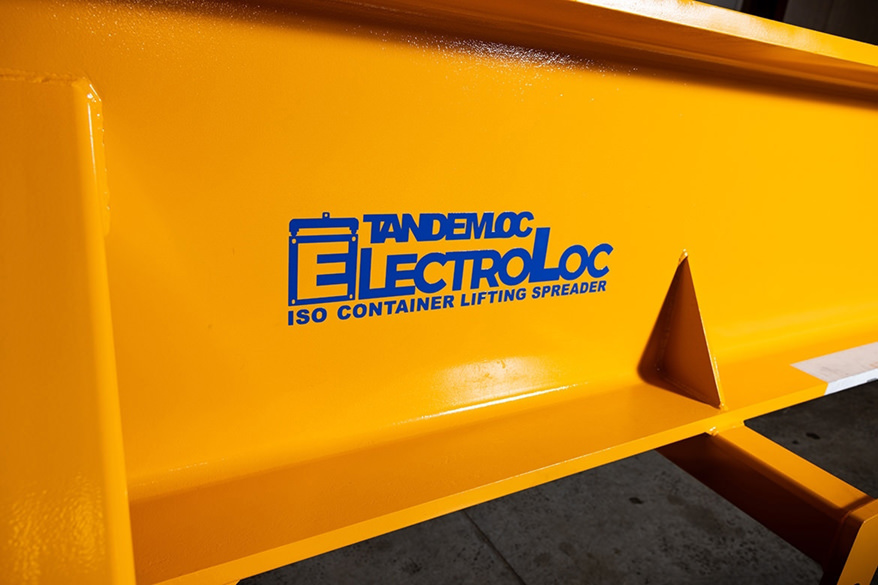

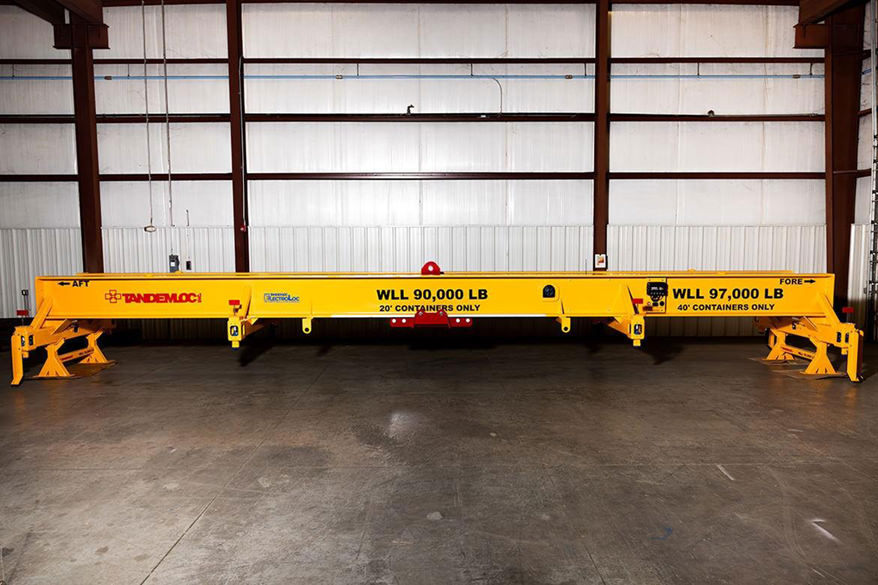

The AX17M00-00A-PA is a combination of our 20-foot and 40-foot electric load leveling spreaders, also known as Electroloc. The combination enables the user to have more versatility with a smaller storage footprint. It also allows the user to seamlessly shift between lifting different container lengths without changing lifting devices, cutting down on non-productive time.
Key Features

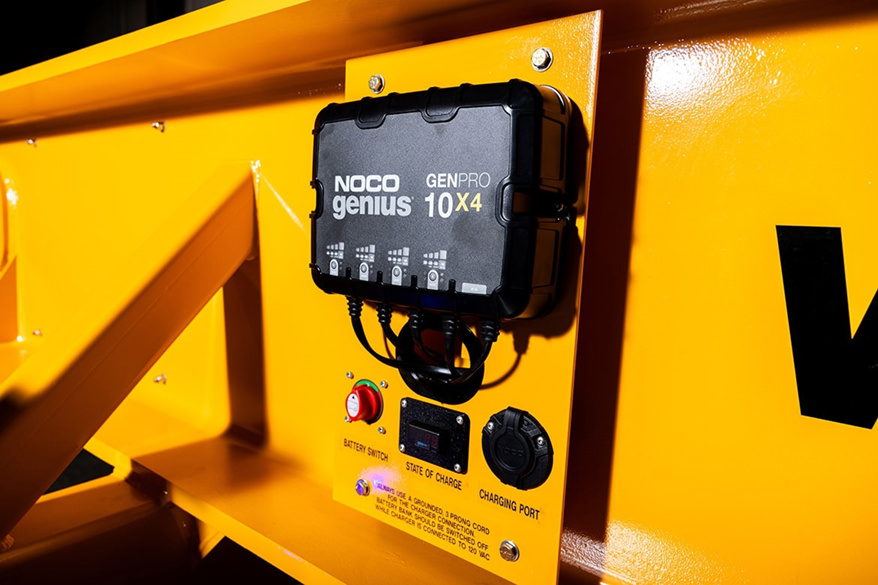

- Onboard batteries with smart charging system

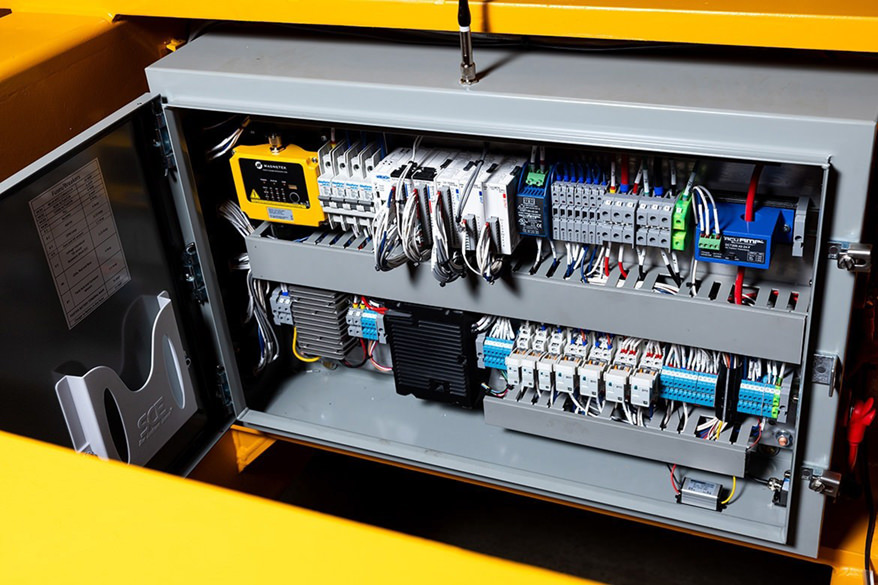

- Battery monitoring system
- Industrial wireless remote control
- Shift between lifts without changing devices
- Adjustments while under the load with up to 4 degrees of tilt
- 50 inches of pull-to-pull for a forty-foot container
- 45 inches of pull-to-pull for a twenty-foot container

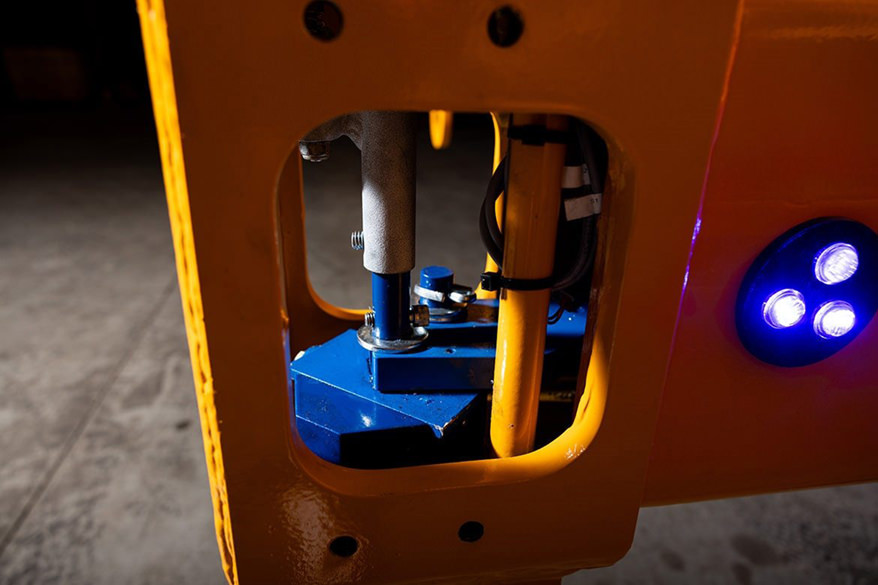

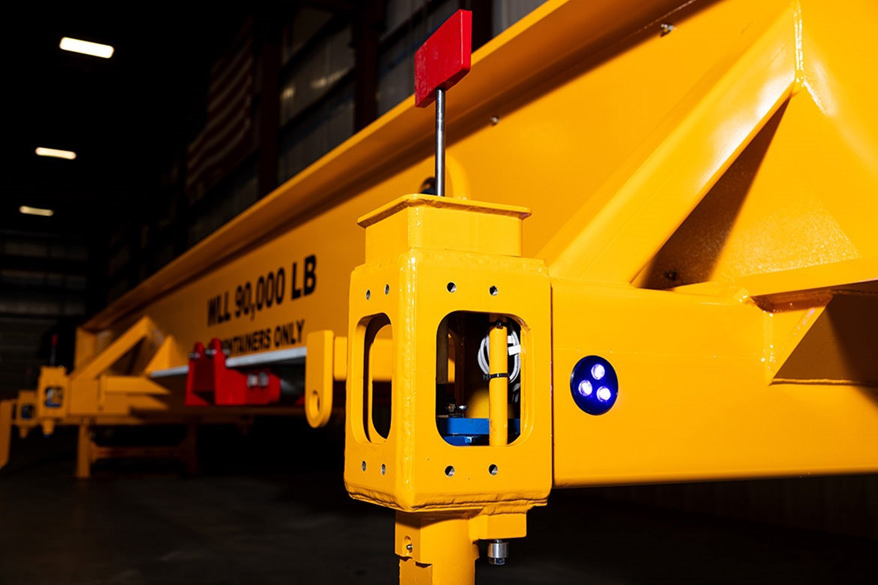

- Eight bayonet locations that lock and unlock
- Part No.: AX17M00-00A-PA, 20/40’ ISO LOAD LEVELING ELECTROLOC LIFT FRAME

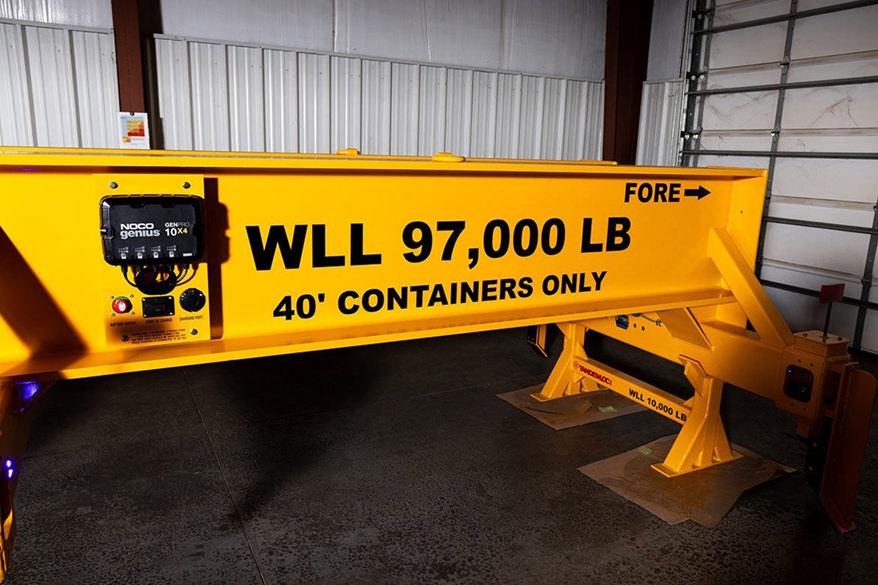

- WLL: 97,000 LB. FOR 40 ISO CONTAINERS-PROOF TESTED TO 125% (121,250 LB.) AND CERTIFIED

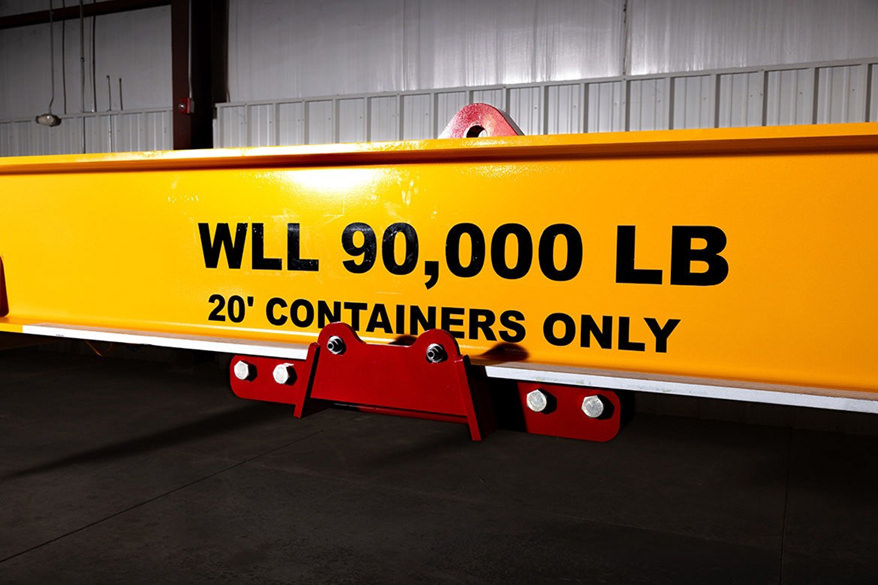

- WLL: 90,000 LB. FOR 20 ISO CONTAINERS-PROOF TESTED TO 125% (112,500 LB.) AND CERTIFIED
- STANDARD SPECIFICATION# EAD21000A APPLIES
- FINISH: SANDBLAST, PRIME AND PAINT SAFETY YELLOW
- CALCULATED WEIGHT: 18,470 LB.
- DESIGNED AND MANUFACTURED TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY B, SERVICE CLASS 0.
