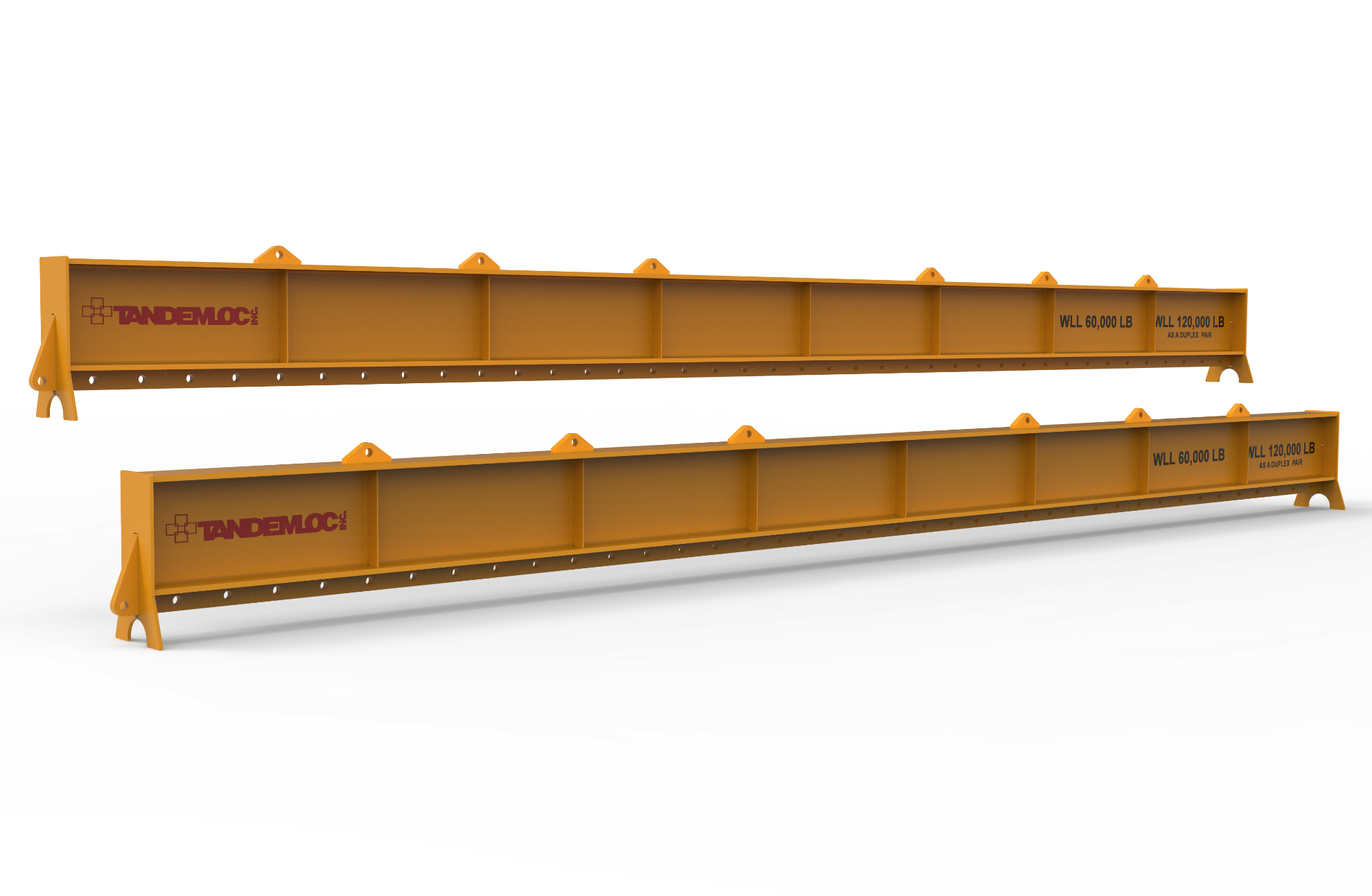

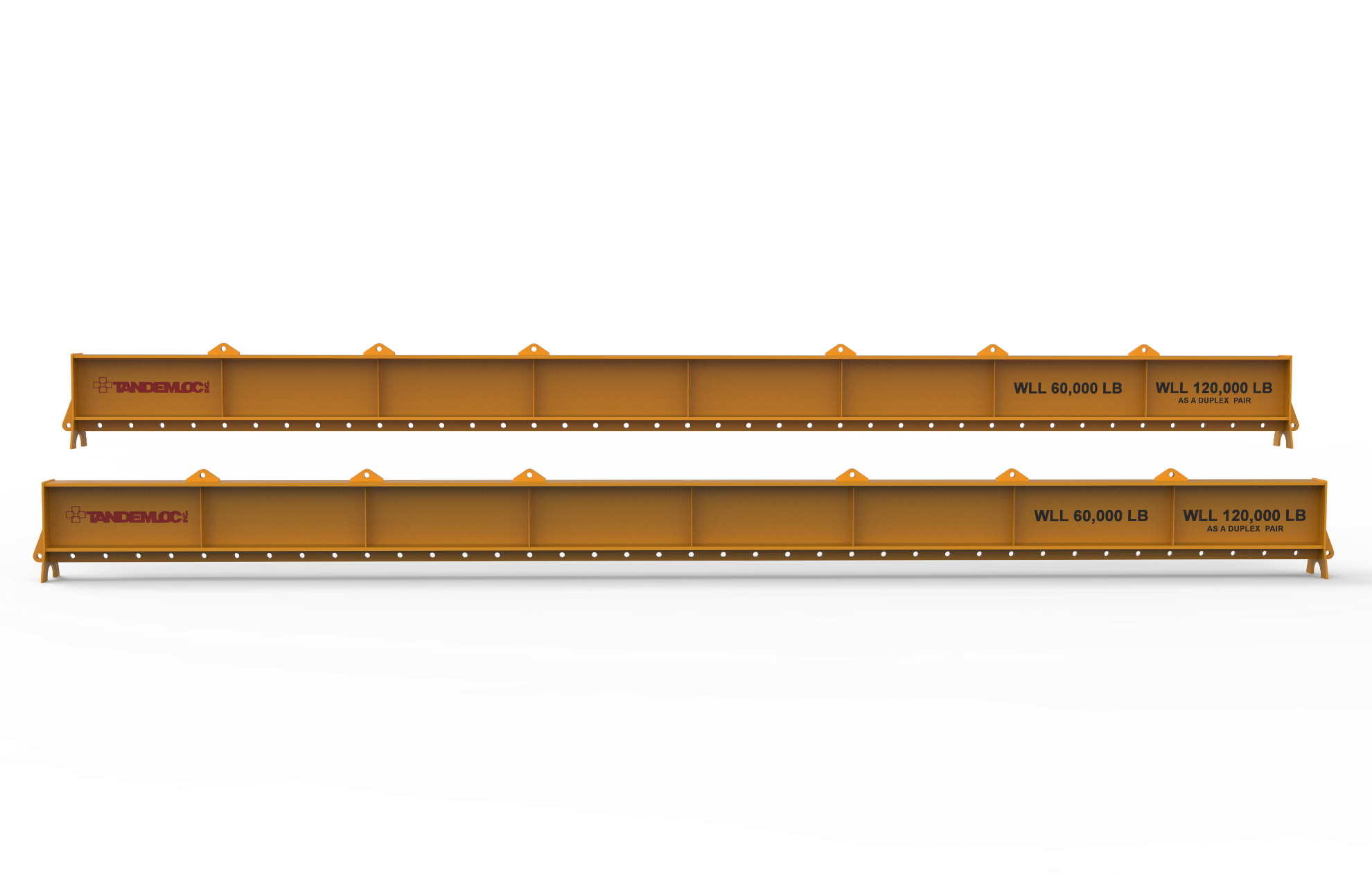

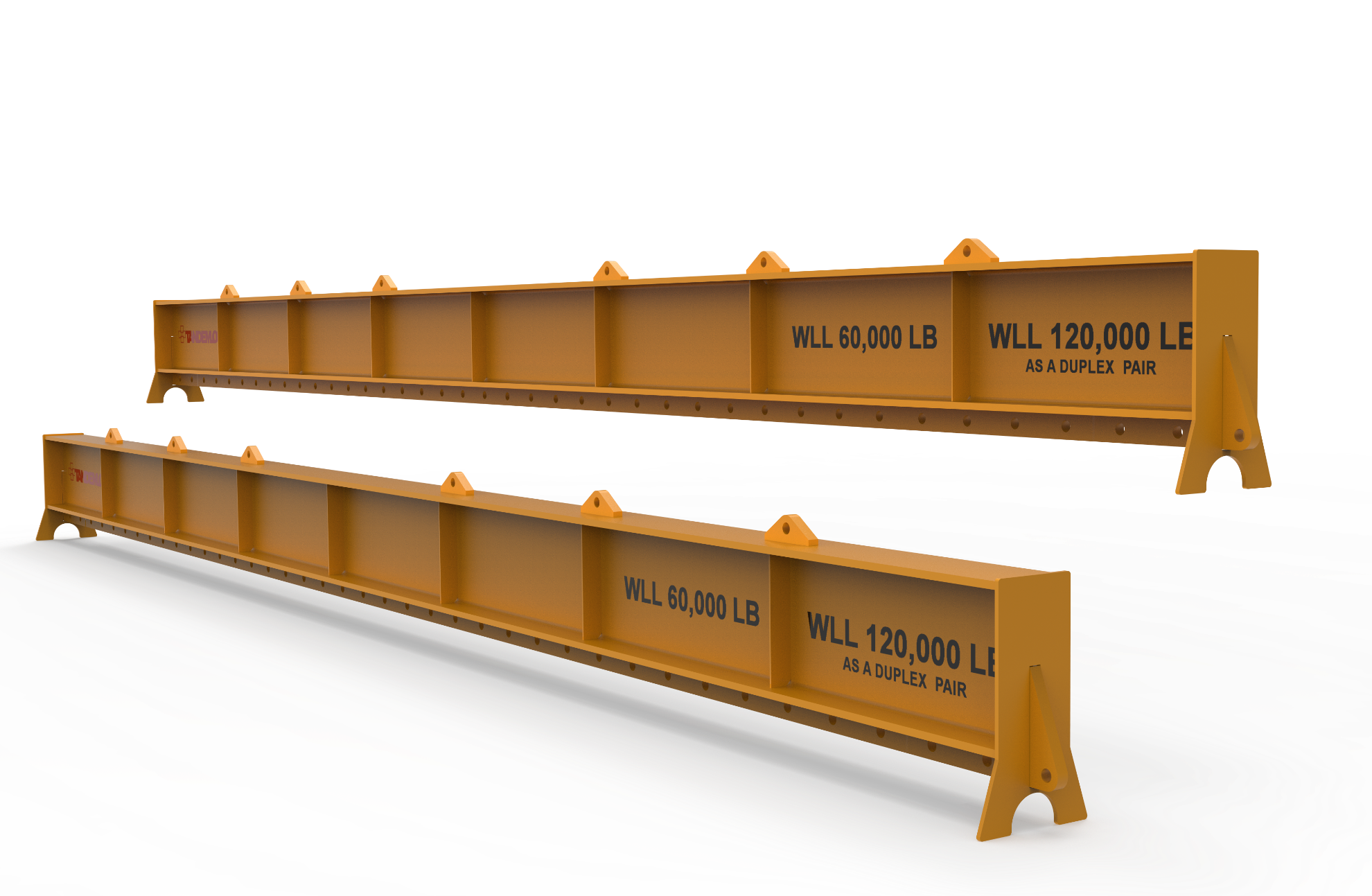

AZ02A00-00A-PA Multi-Pick Lift Beam

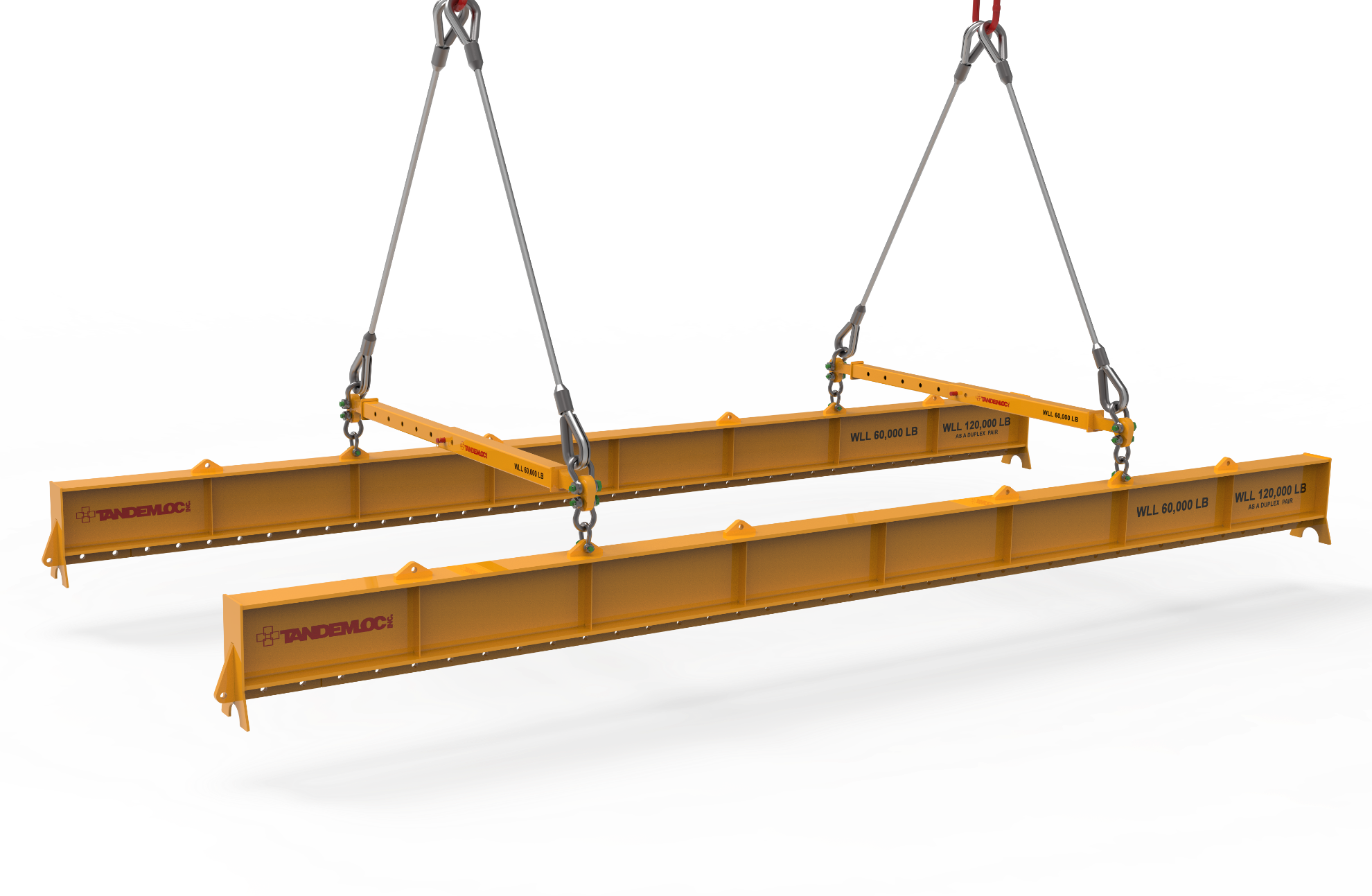

Like Tandemloc’s spreader/lift beam combination lifting device, the AZ02A multi-pick lift beam is meant for diverse applications where a standard lift beam or spreader beam won’t suffice. Typically used as an assembly with other lift beams or spreader beams (sold separately), the AZ02 lift beams provide a robust, high-quality option for your rigging plan with unique parameters. For even more optimization, we can customize this beam to fit your exact lift.

Notes:

• Part No. : AZ02A00-00A-PA, LIFT BEAM, MULTI-PICK, 480”
• WLL: 60,000 LB.
• PROOF TESTED TO 125% (75,000 LB.) AND CERTIFIED
• STANDARD SPECIFICATION# EAD21000A APPLIES
• FINISH: SANDBLAST, PRIME AND PAINT SAFETY YELLOW
• CALCULATED WEIGHT: 8,358 LB.
• DESIGNED AND MANUFACTURED TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY B, SERVICE CLASS 0.
• TELESCOPIC SPREADER BEAMS NOT INCLUDED
