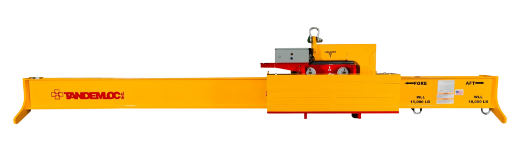

AZ24A00-00A-PA Offset Counterweight Lift Beam

LIFT BEAM, OFFSET, MOTORIZED, WLL 15,000 LB.

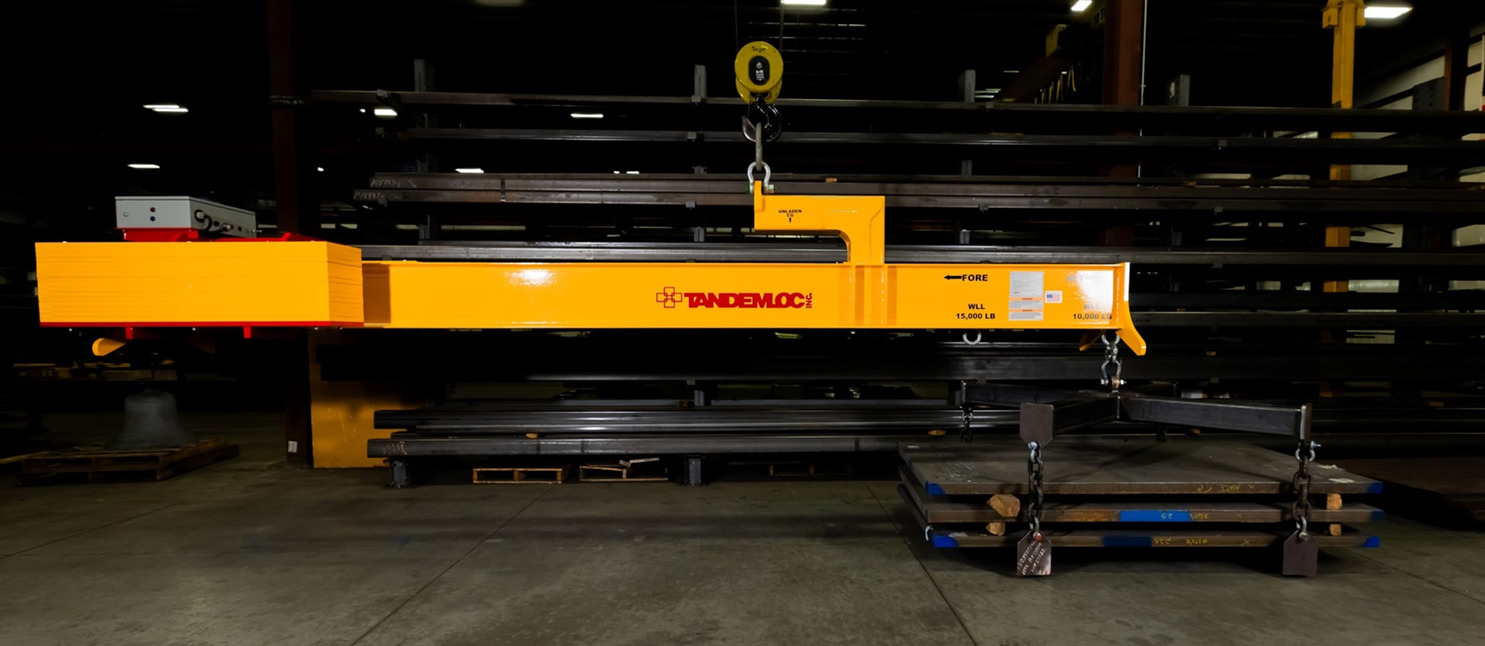

Tandemloc understands there is no one-size-fits-all solution for lifting applications. Even with our extensive product lineup, somebody will always need customization. The Offset is a customized Counterweight Lift Beam designed to reach where a crane can’t. The current distance of reach is 86”, but if that doesn’t work for your application, our engineers here at Tandemloc can provide a custom product that will meet your requirements.

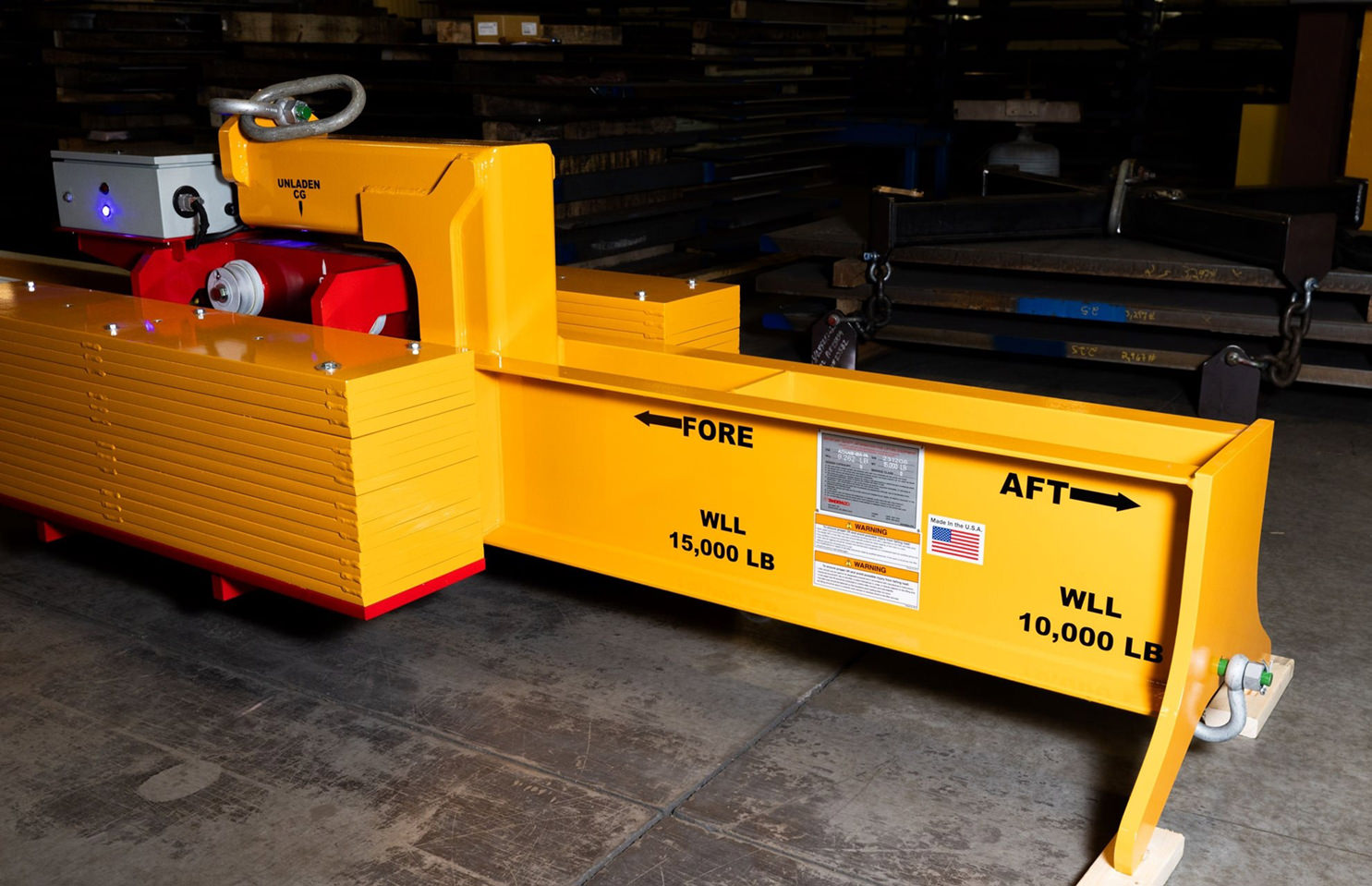

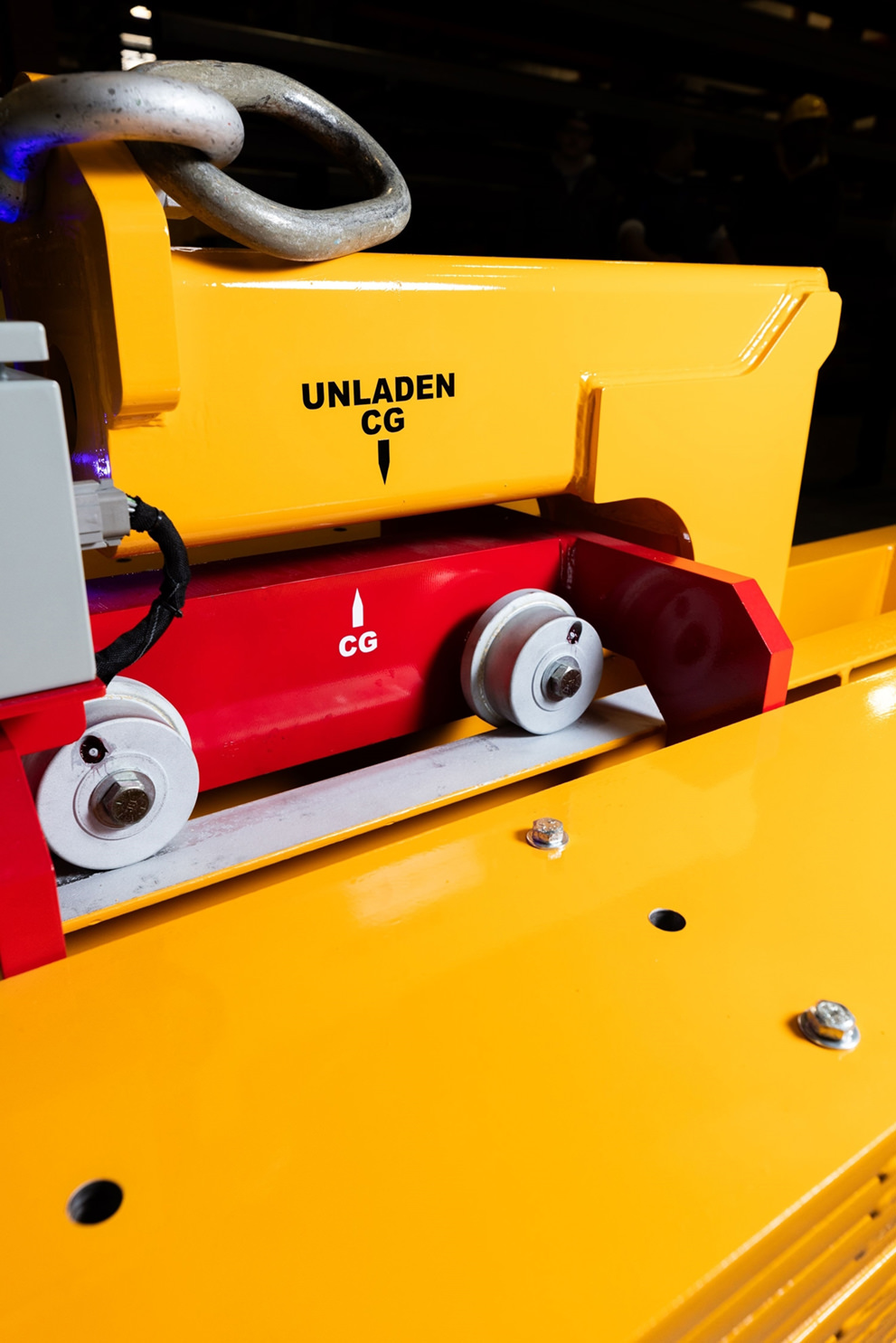

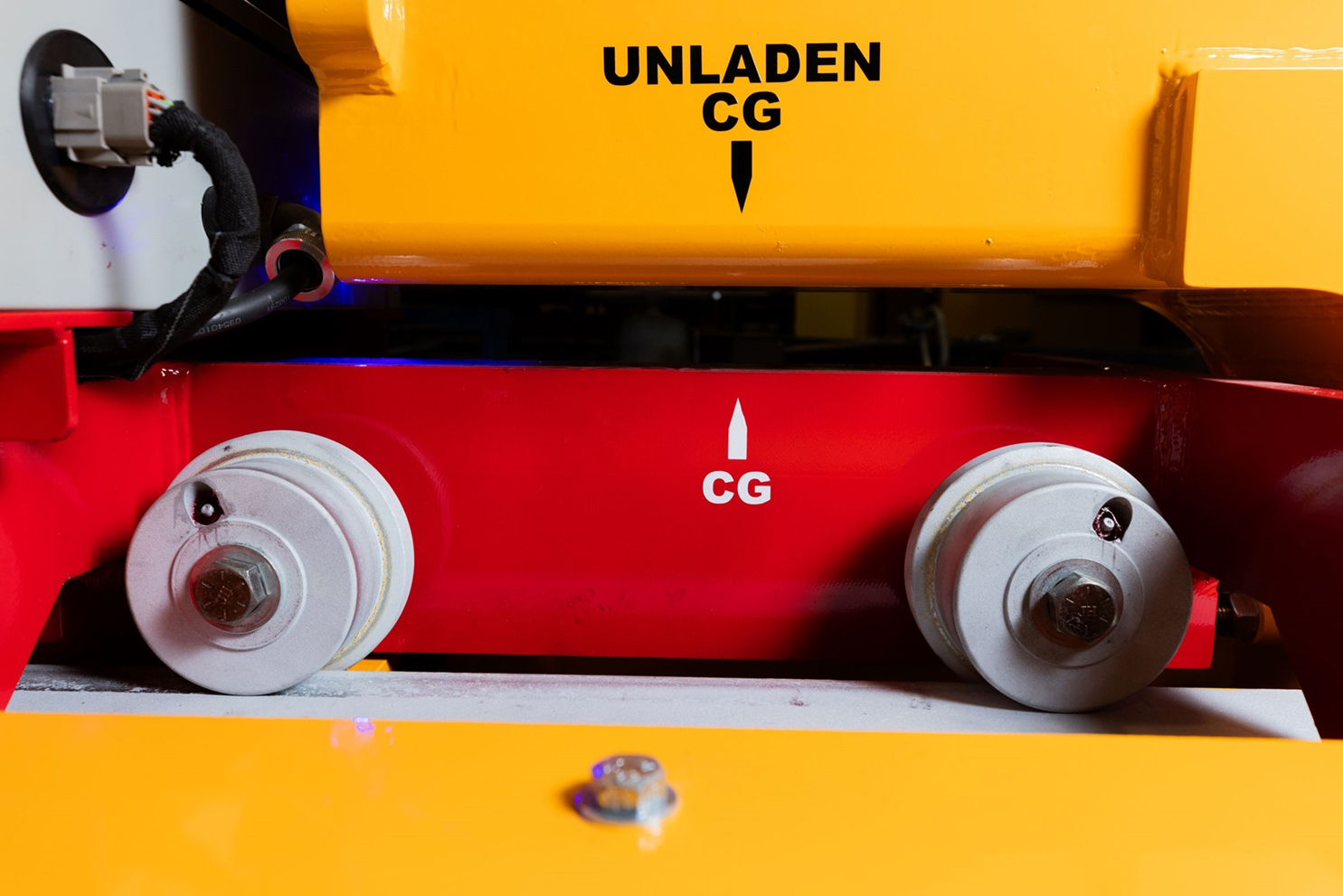

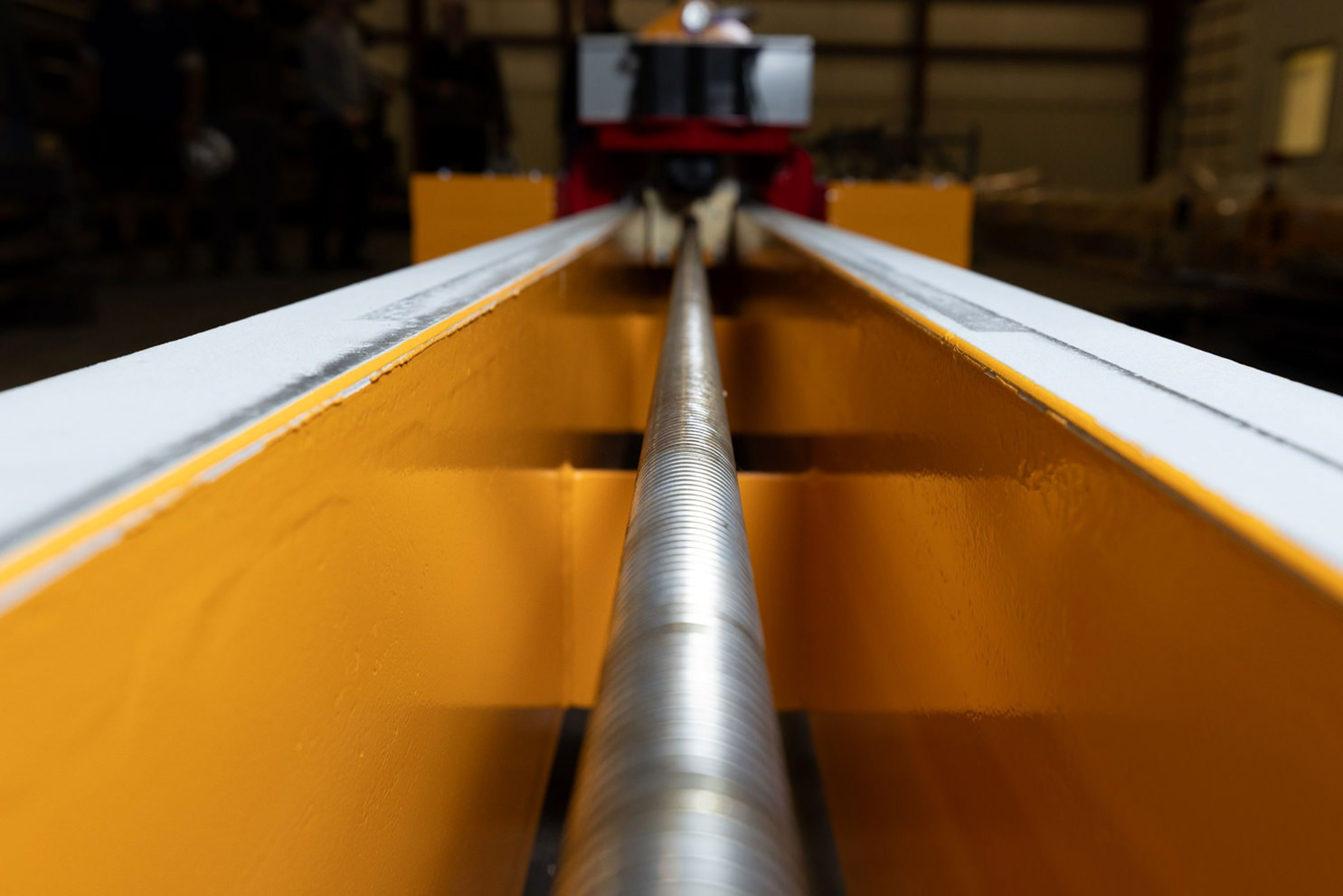

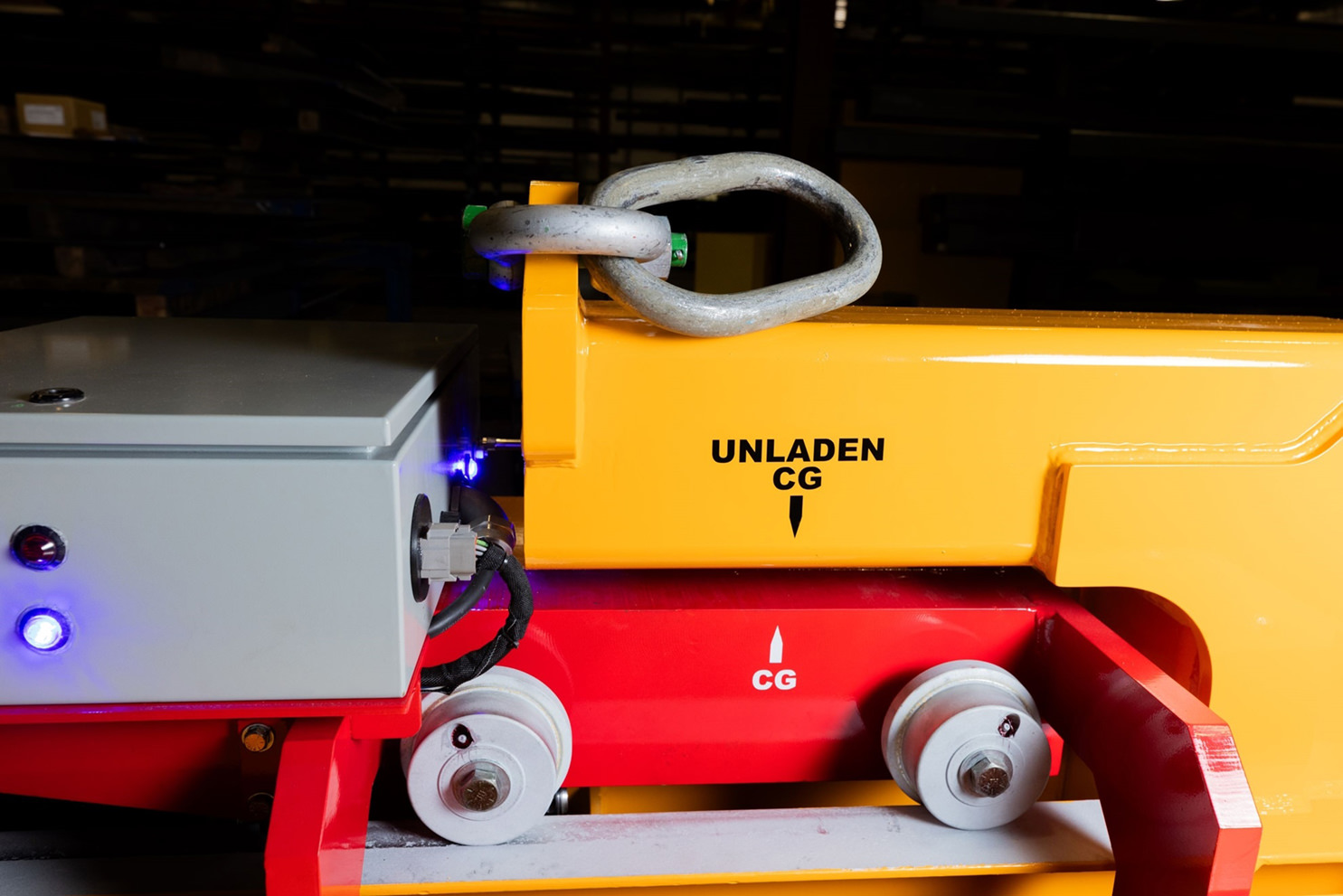

The AZ24 cantilever beam can be used either manually or motorized. The motorized setting uses a removable single 12-volt, 15AH lithium battery pack to power an ¼ horsepower DC electric motor driving a nut on a fixed acme screw. This is a self-locking drivetrain without the need for a braking system; it’s non-back-driveable, eliminating the concern for runaway counterweights. The counterweight aligns with the beam and is not hanging below it for a more compact profile.

  • PROOF TESTED TO 125% (18,750 LB.) AND CERTIFIED
  • STANDARDS: Specification #EAD21000A APPLIES
  • FINISH: SANDBLAST, PRIME AND PAINT SAFETY YELLOW
  • COUNTERWEIGHT: 7,300 LB.
  • CALCULATED WEIGHT: 9,262 LB.
  • DESIGNED AND MANUFACTURED TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY B, SERVICE CLASS 0.

Please Register For Price Quote

RFID

Enhance Operations Track and Authenticate RFID
CLICK FOR MORE INFO

Already a member Login Here

Type Offset Counterweight Lift Beam
Max WLL (lbs.) 15,000 LBS
Overall Beam Length (inches) 232.35”
Offset Length 86"
Top Rigging Included No
