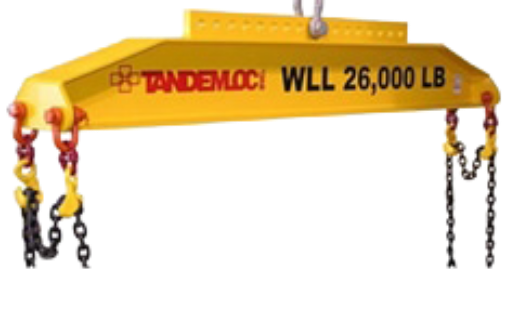

These economical sling assemblies allow the user to lift from the bottom corner fittings and adjust for off-center loads in both longitudinal and transverse directions. They are compact and easy to store and ship. This product offers all the features of the heavier Q2500AA-299 Low profile 20' ISO container lifters, but it's much lighter for use with containers weighing up to 30,000 lbs.
- PROOF TESTED:
Beam - Proof tested to 125% of workload limit.
Chain and fittings - Tested to 200% of their rated WLL.
- WEIGHT: 814 LB, 1,000 LB. with PC9
- Standard specification #EAD21000A applies
- MATERIAL AND FINISH: Steel with safety yellow paint. Chain & connector link pins/spacers are not painted.
- INSTRUCTIONS: For load leveling, adjust the length of the chain legs to shorten the heavy end and lengthen the legs on the light end. Always leave slack in chain length that ends up between the two PC4 hooks to allow the two hooks to swing to their natural use angle. Adjust side-to-side leveling by moving PC7 toward the heavy side.
Product Notes
The containers noted in this dwg. are typical ISO freight containers as described in iso 668:1988(E) designation.
1AAA, 1AA, 1A, 1 AX - All "40 ft." containers
1CC, 1C, 1CX - all "20 ft" containers (19'-10' ½")
This sling can also lift 1BB, 1B, 1BX "30 ft.." Containers (29'-11 1/4") & 1D & 1DX "10 ft." containers at their max load rating.
- Load leveling of this sling is accomplished by manually moving the top shackle; ie, by placing its bolt into one of the 13 holes provided for transverse leveling and by adjusting the chain leg lengths to level longitudinally. Keep the chain lengths matched on each side. The chain is color marked at the center and every 10 links four places on each side of the center.
- This sling assembly conforms to ANSI B30.9-1996, ANSI B30.19-199, B30.20 & I.S.O. 3874 Fgt. Cont. Handling.
- All dimensions are subject to manufacturing tolerances.
- PC 9 is the metal shipping container provided with each sling assembly.
