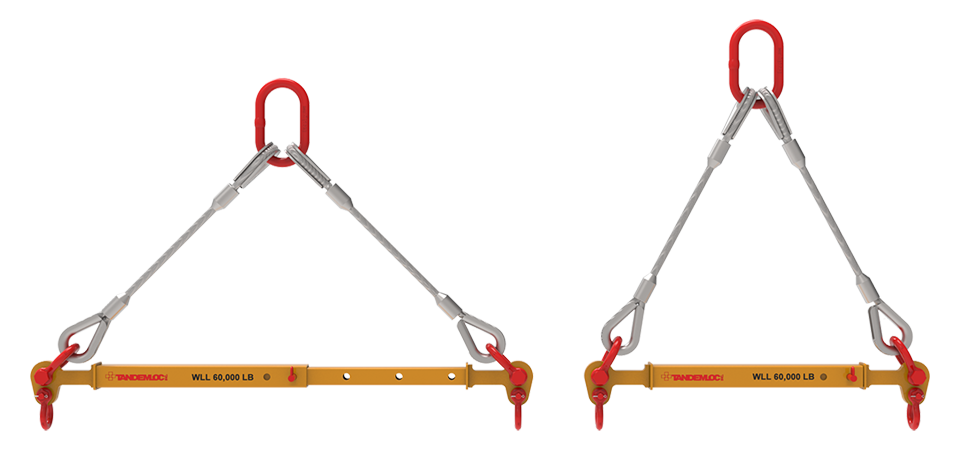

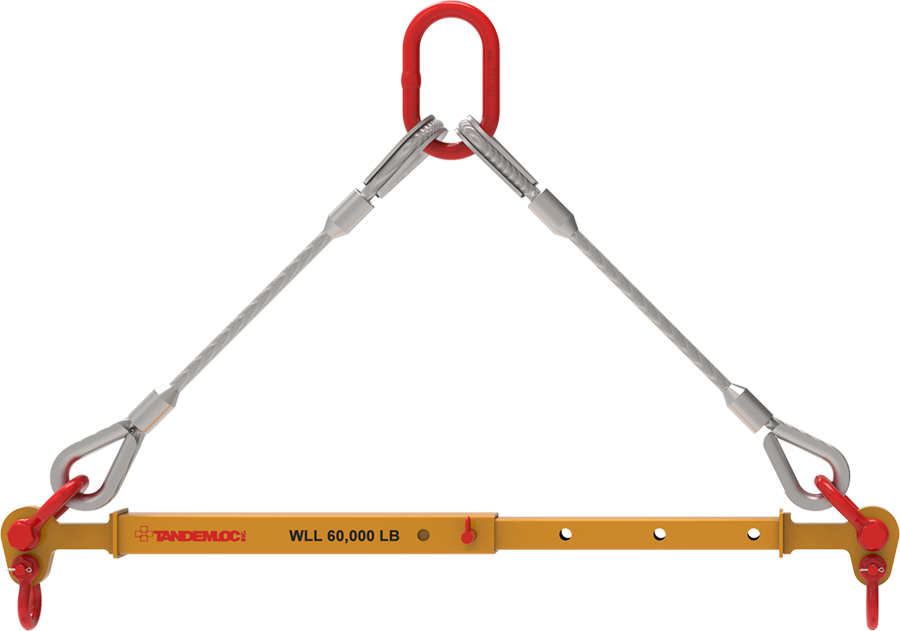

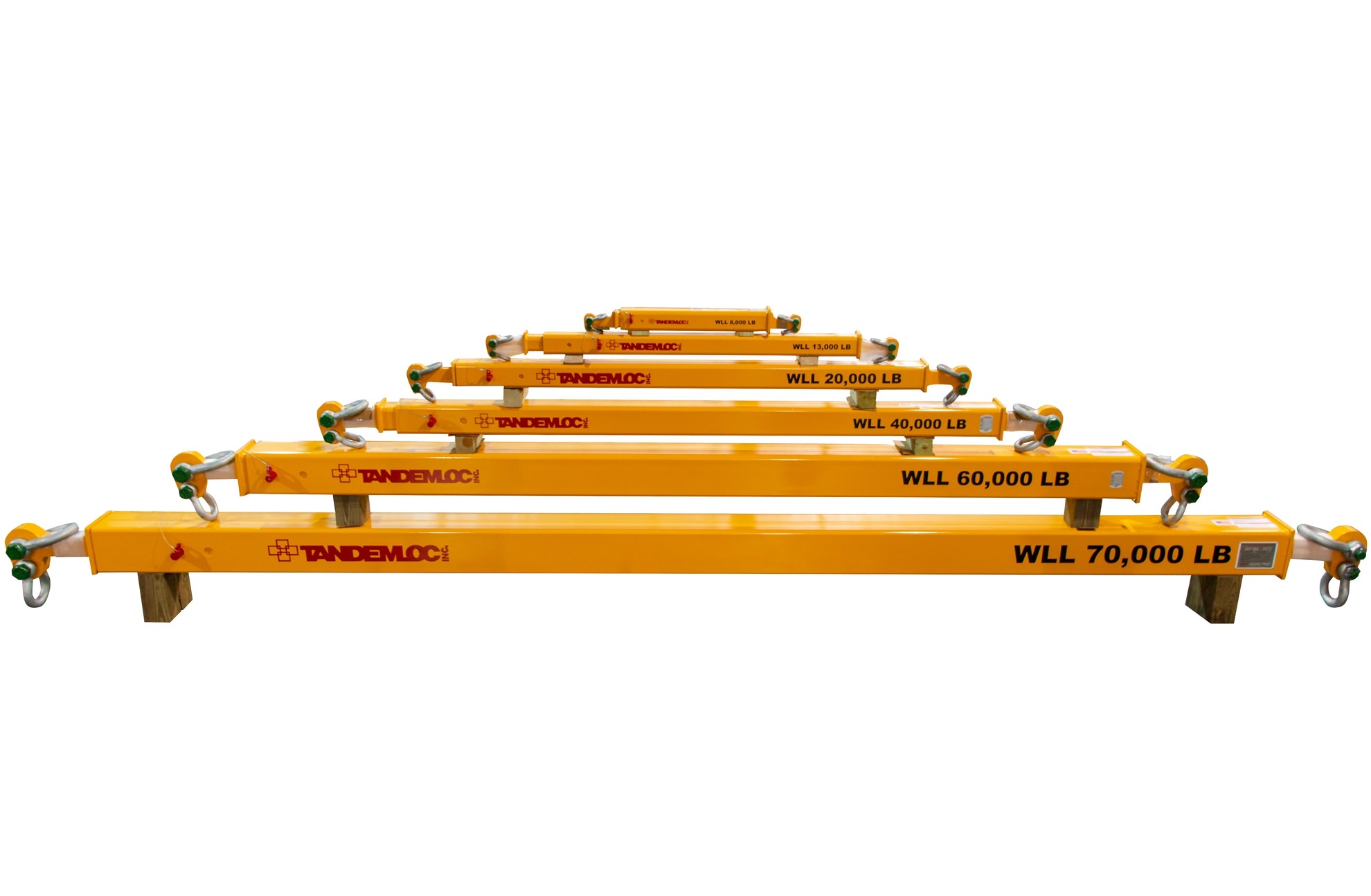

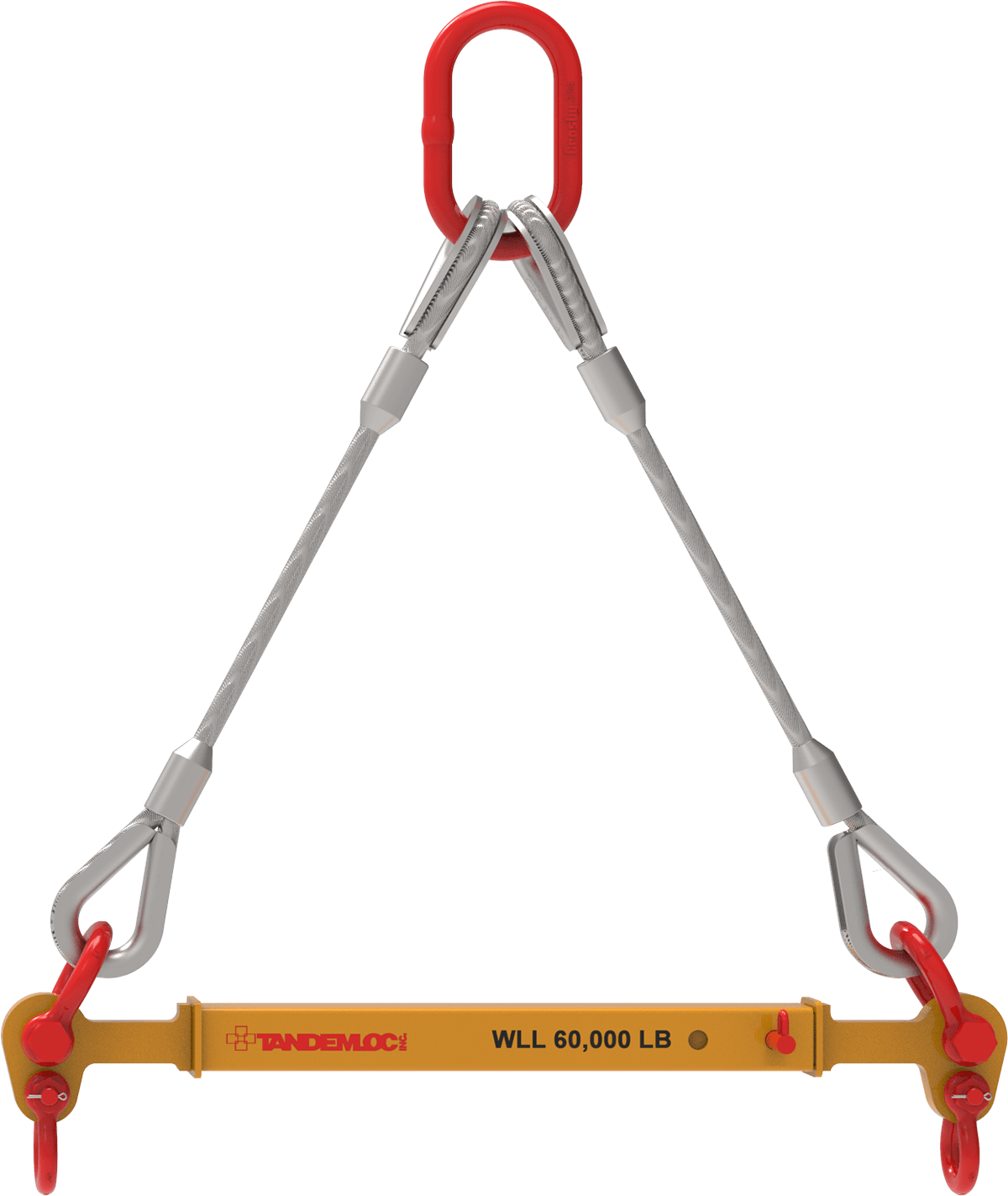

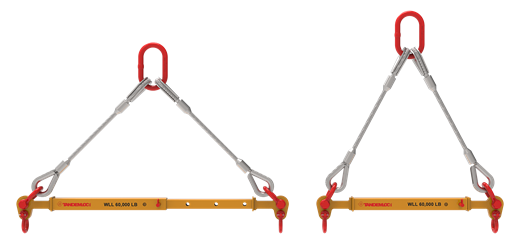

AT14 Series Spreader Beams

At14 Spreader Beams

Tandemloc’s AT14 Series Spreader Beams offer a wide range of minimum and maximum lengths in convenient increments of only a few inches. From the light 2,000lbs capacity to upwards of 100,000lbs, our versatile spreader beams include top and bottom shackles and the optional wire rope top rigging so that the end user is ready to hook on and lift! These are just a few of our most common sizes. QUICK DELIVERY! If you need a custom length, capacity, or top rigging setup, contact our sales department.

Proof Tested to 125% of the WLL and Certified.

Calculated Weight: See Chart.

Finish: Sandblast, Primed, and Painted Safety Yellow.

Standards: Specification #EAD21000A Applies.

Designed and manufactured to meet or exceed ASME B30.20 and BTH-1, Design Category B, Service Class 0.

Please inform your salesperson if your lifter is to be used in an underwater environment.

Learn more about our paint process

AT14 product features

2,000 lbs

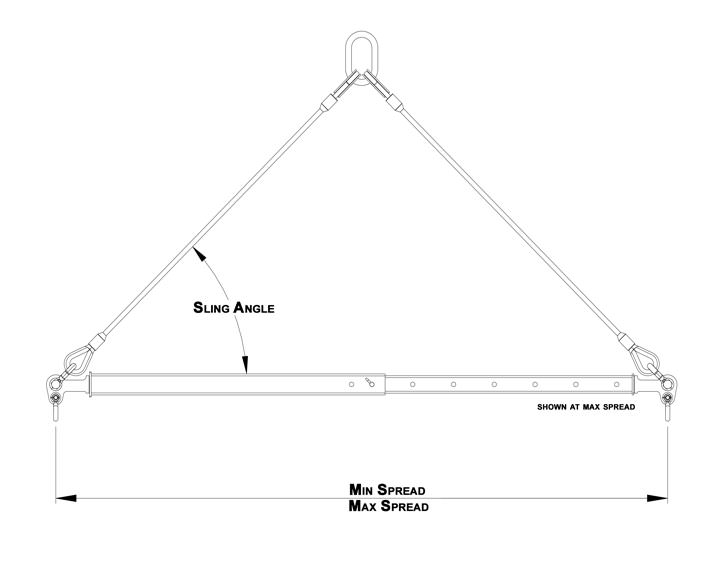

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A002-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 2,000 WLL	2,000	72"	48"	45°	105	No	Register For Quote
AT14A002-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 54" Spread, 2,000 WLL	2,000	84"	54"	45°	121	No	Register For Quote
AT14A002-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 60" Spread, 2,000 WLL	2,000	96"	60"	45°	136	No	Register For Quote
AT14A002-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 72" Spread, 2,000 WLL	2,000	120"	72"	45°	167	No	Register For Quote
AT14A002-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 84" Spread, 2,000 WLL	2,000	144"	84"	45°	196	No	Register For Quote
AT14A002-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 96" Spread, 2,000 WLL	2,000	168"	96"	45°	226	No	Register For Quote
AT14A002-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 2,000 WLL	2,000	180"	108"	45°	341	No	Register For Quote
AT14A002-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 2,000 WLL	2,000	240"	144"	45°	448	Yes	Register For Quote
AT14A002-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 2,000 WLL	2,000	72"	48"	45°	109	No	Register For Quote
AT14A002-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 54" Spread, 2,000 WLL	2,000	84"	54"	45°	125	No	Register For Quote
AT14A002-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 60" Spread, 2,000 WLL	2,000	96"	60"	45°	145	No	Register For Quote
AT14A002-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 72" Spread, 2,000 WLL	2,000	120"	72"	45°	177	No	Register For Quote
AT14A002-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 84" Spread, 2,000 WLL	2,000	144"	84"	45°	212	Yes	Register For Quote
AT14A002-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 96" Spread, 2,000 WLL	2,000	168"	96"	45°	230	No	Register For Quote
AT14A002-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 2,000 WLL	2,000	180"	108"	45°	353	No	Register For Quote
AT14A002-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 2,000 WLL	2,000	240"	144"	45°	462	No	Register For Quote

4,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A004-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 60" Spread, 4,000 WLL	4,000	96"	60"	45°	147	No	Register For Quote
AT14A004-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120” - 72" Spread, 4,000 WLL	4,000	120”	72”	45°	177	No	Register For Quote
AT14A004-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 4,000 WLL	4,000	180"	108"	45°	359	No	Register For Quote
AT14A004-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 4,000 WLL	4,000	72"	48"	45°	116	No	Register For Quote
AT14A004-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 4,000 WLL	4,000	240"	144"	45°	465	No	Register For Quote
AT14A004-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 4,000 WLL	4,000	72"	48"	45°	107	No	Register For Quote
AT14A004-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 60" Spread, 4,000 WLL	4,000	96"	60"	45°	137	No	Register For Quote
AT14A004-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 72" Spread, 4,000 WLL	4,000	120"	72"	45°	167	No	Register For Quote
AT14A004-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 84" Spread, 4,000 WLL	4,000	144"	84"	45°	198	No	Register For Quote
AT14A004-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 4,000 WLL	4,000	180"	108"	45°	347	No	Register For Quote
AT14A004-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 4,000 WLL	4,000	240"	144"	45°	450	No	Register For Quote
AT14A004-144SPA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 84" Spread, 4,000 WLL	4,000	144"	84"	45°	214	No	Register For Quote

8,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A008-048-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 48" - 36" Spread, 8,000 WLL	8,000	48"	36"	45°	75	Yes	Register For Quote
AT14A008-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 8,000 WLL	8,000	72"	48"	45°	109	No	Register For Quote
AT14A008-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 60" Spread, 8,000 WLL	8,000	96"	60"	45°	140	No	Register For Quote
AT14A008-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 72" Spread, 8,000 WLL	8,000	120"	72"	45°	170	No	Register For Quote
AT14A008-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 84" Spread, 8,000 WLL	8,000	144"	84"	45°	200	No	Register For Quote
AT14A008-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 8,000 WLL	8,000	180"	108"	45°	347	Yes	Register For Quote
AT14A008-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 8,000 WLL	8,000	240"	144"	45°	454	No	Register For Quote
AT14A008-048SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 48" - 36" Spread, 8,000 WLL	8,000	48"	36"	45°	80	No	Register For Quote
AT14A008-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 8,000 WLL	8,000	72"	48"	45°	120	No	Register For Quote
AT14A008-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 60" Spread, 8,000 WLL	8,000	96"	60"	45°	153	No	Register For Quote
AT14A008-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 72" Spread, 8,000 WLL	8,000	120"	72"	45°	184	No	Register For Quote
AT14A008-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 84" Spread, 8,000 WLL	8,000	144"	84"	45°	216	No	Register For Quote
AT14A008-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 8,000 WLL	8,000	180"	108"	45°	365	No	Register For Quote
AT14A008-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 8,000 WLL	8,000	240"	144"	45°	475	No	Register For Quote

13,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A013-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 13,000 WLL	13,000	72"	48"	45°	137	No	Register For Quote
AT14A013-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 54" Spread, 13,000 WLL	13,000	84"	54"	48"	154	No	Register For Quote
AT14A013-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 60" Spread, 13,000 WLL	13,000	96"	60"	45°	171	No	Register For Quote
AT14A013-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 72" Spread, 13,000 WLL	13,000	120"	72"	45°	212	No	Register For Quote
AT14A013-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 13,000 WLL	13,000	144"	90"	45°	252	No	Register For Quote
AT14A013-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 13,000 WLL	13,000	180"	108"	45°	385	No	Register For Quote
AT14A013-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 13,000 WLL	13,000	240"	144"	45°	495	-	Register For Quote
AT14A013-318SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 318" - 180" Spread, 13,000 WLL	13,000	318"	180"	45°	779	No	Register For Quote
AT14A013-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 13,000 WLL	13,000	72"	48"	45°	112	No	Register For Quote
AT14A013-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 54" Spread, 13,000 WLL	13,000	84"	54"	48"	127	No	Register For Quote
AT14A013-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 60" Spread, 13,000 WLL	13,000	96"	60"	45°	143	No	Register For Quote
AT14A013-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 72" Spread, 13,000 WLL	13,000	120"	78"	45°	181	No	Register For Quote
AT14A013-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 13,000 WLL	13,000	144"	90"	45°	218	No	Register For Quote
AT14A013-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 13,000 WLL	13,000	180"	108"	45°	347	Yes	Register For Quote
AT14A013-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 13,000 WLL	13,000	240"	144"	45°	449	No	Register For Quote
AT14A013-318-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 318" - 180" Spread, 13,000 WLL	13,000	318"	180"	45°	724	No	Register For Quote

18,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A018-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 18,000 WLL	18,000	72"	48"	45°	117	-	Register For Quote
AT14A018-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 54" Spread, 18,000 WLL	18,000	84"	54"	45°	134	No	Register For Quote
AT14A018-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 18,000 WLL	18,000	96"	66"	45°	155	No	Register For Quote
AT14A018-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 75" Spread, 18,000 WLL	18,000	120"	75"	45°	185	No	Register For Quote
AT14A018-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 18,000 WLL	18,000	144"	90"	45°	223	No	Register For Quote
AT14A018-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 18,000 WLL	18,000	168"	102"	45°	330	No	Register For Quote
AT14A018-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 18,000 WLL	18,000	180"	108"	45°	349	No	Register For Quote
AT14A018-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 18,000 WLL	18,000	240"	144"	45°	456	No	Register For Quote
AT14A018-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 18,000 WLL	18,000	360"	204"	45°	818	No	Register For Quote
AT14A018-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 18,000 WLL	18,000	72"	48"	45°	154	-	Register For Quote
AT14A018-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 54" Spread, 18,000 WLL	18,000	84"	54"	45°	173	No	Register For Quote
AT14A018-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 18,000 WLL	18,000	96"	66"	45°	196	No	Register For Quote
AT14A018-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 75" Spread, 18,000 WLL	18,000	120"	75"	45°	230	No	Register For Quote
AT14A018-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 18,000 WLL	18,000	144"	90"	45°	272	No	Register For Quote
AT14A018-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 18,000 WLL	18,000	168"	102"	45°	393	No	Register For Quote
AT14A018-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 18,000 WLL	18,000	180"	108"	45°	404	No	Register For Quote
AT14A018-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 18,000 WLL	18,000	240"	144"	45°	523	No	Register For Quote
AT14A018-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 18,000 WLL	18,000	360"	204"	45°	903	No	Register For Quote

20,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A020-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 20,000 WLL	20,000	72"	48"	45°	178	No	Register For Quote
AT14A020-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 54" Spread, 20,000 WLL	20,000	84"	54"	45°	195	No	Register For Quote
AT14A020-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 20,000 WLL	20,000	96"	66"	45°	227	No	Register For Quote
AT14A020-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 20,000 WLL	20,000	120"	78"	45°	260	No	Register For Quote
AT14A020-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 20,000 WLL	20,000	144"	90"	45°	294	No	Register For Quote
AT14A020-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 20,000 WLL	20,000	168"	102"	45°	406	No	Register For Quote
AT14A020-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 20,000 WLL	20,000	180"	108"	45°	428	No	Register For Quote
AT14A020-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 20,000 WLL	20,000	240"	144"	45°	545	No	Register For Quote
AT14A020-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 20,000 WLL	20,000	360"	204"	45°	1103	No	Register For Quote
AT14A020-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 20,000 WLL	20,000	72"	48"	45°	130	No	Register For Quote
AT14A020-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 54" Spread, 20,000 WLL	20,000	84"	54"	45°	145	No	Register For Quote
AT14A020-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 20,000 WLL	20,000	96"	66"	45°	175	No	Register For Quote
AT14A020-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 20,000 WLL	20,000	120"	78"	45°	205	No	Register For Quote
AT14A020-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 20,000 WLL	20,000	144"	90"	45°	235	No	Register For Quote
AT14A020-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 20,000 WLL	20,000	168"	102"	45°	342	No	Register For Quote
AT14A020-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 20,000 WLL	20,000	180"	108"	45°	362	No	Register For Quote
AT14A020-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 20,000 WLL	20,000	240"	144"	45°	468	No	Register For Quote
AT14A020-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 20,000 WLL	20,000	360"	204"	45°	995	No	Register For Quote

23,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A023-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 23,000 WLL	23,000	72"	48"	45°	159	No	Register For Quote
AT14A023-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 54" Spread, 23,000 WLL	23,000	84"	54"	45°	180	No	Register For Quote
AT14A023-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 23,000 WLL	23,000	96"	66"	45°	221	No	Register For Quote
AT14A023-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 23,000 WLL	23,000	120"	78"	45°	261	No	Register For Quote
AT14A023-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 23,000 WLL	23,000	144"	90"	45°	302	No	Register For Quote
AT14A023-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 23,000 WLL	23,000	168"	102"	45°	342	No	Register For Quote
AT14A023-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 23,000 WLL	23,000	180"	108"	45°	362	No	Register For Quote
AT14A023-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 23,000 WLL	23,000	240"	144"	45°	577	No	Register For Quote
AT14A023-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 23,000 WLL	23,000	360"	204"	45°	995	No	Register For Quote
AT14A023-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 23,000 WLL	23,000	72"	48"	45°	202	No	Register For Quote
AT14A023-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 54" Spread, 23,000 WLL	23,000	84"	54"	45°	227	No	Register For Quote
AT14A023-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 23,000 WLL	23,000	96"	66"	45°	272	No	Register For Quote
AT14A023-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 23,000 WLL	23,000	120"	78"	45°	315	No	Register For Quote
AT14A023-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 23,000 WLL	23,000	144"	90"	45°	361	No	Register For Quote
AT14A023-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 23,000 WLL	23,000	168"	102"	45°	406	No	Register For Quote
AT14A023-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 23,000 WLL	23,000	180"	108"	45°	428	No	Register For Quote
AT14A023-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 23,000 WLL	23,000	240"	144"	45°	660	No	Register For Quote
AT14A023-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 23,000 WLL	23,000	360"	204"	45°	1103	No	Register For Quote

25,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A025-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 48" Spread, 25,000 WLL	25,000	72"	51"	45°	252	No	Register For Quote
AT14A025-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 25,000 WLL	25,000	96"	66"	45°	307	No	Register For Quote
AT14A025-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 25,000 WLL	25,000	120"	78"	45°	352	No	Register For Quote
AT14A025-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 25,000 WLL	25,000	144"	90"	45°	398	No	Register For Quote
AT14A025-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 25,000 WLL	25,000	168"	102"	45°	442	No	Register For Quote
AT14A025-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 25,000 WLL	25,000	180"	108"	45°	465	No	Register For Quote
AT14A025-216SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 216" - 132" Spread, 25,000 WLL	25,000	216"	132"	45°	626	No	Register For Quote
AT14A025-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 25,000 WLL	25,000	240"	144"	45°	698	No	Register For Quote
AT14A025-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 25,000 WLL	25,000	360"	204"	45°	1138	No	Register For Quote
AT14A025-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 48" Spread, 25,000 WLL	25,000	72"	51"	45°	187	No	Register For Quote
AT14A025-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 25,000 WLL	25,000	96"	66"	45°	237	No	Register For Quote
AT14A025-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 25,000 WLL	25,000	120"	78"	45°	278	No	Register For Quote
AT14A025-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 25,000 WLL	25,000	144"	90"	45°	319	No	Register For Quote
AT14A025-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 25,000 WLL	25,000	168"	102"	45°	358	No	Register For Quote
AT14A025-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 25,000 WLL	25,000	180"	108"	45°	379	No	Register For Quote
AT14A025-216-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 216" - 132" Spread, 25,000 WLL	25,000	216"	132"	45°	550	No	Register For Quote
AT14A025-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 25,000 WLL	25,000	240"	144"	45°	600	No	Register For Quote
AT14A025-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 25,000 WLL	25,000	360"	204"	45°	1016	No	Register For Quote

30,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A030-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 51" Spread, 30,000 WLL	30,000	72"	51"	45°	220	No	Register For Quote
AT14A030-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 60" Spread, 30,000 WLL	30,000	84"	60"	45°	257	No	Register For Quote
AT14A030-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 30,000 WLL	30,000	96"	66"	45°	282	No	Register For Quote
AT14A030-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 30,000 WLL	30,000	120"	78"	45°	334	No	Register For Quote
AT14A030-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 30,000 WLL	30,000	144"	90"	45°	383	No	Register For Quote
AT14A030-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 30,000 WLL	30,000	168"	102"	45°	434	-	Register For Quote
AT14A030-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 30,000 WLL	30,000	180"	108"	45°	460	No	Register For Quote
AT14A030-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 30,000 WLL	30,000	240"	144"	45°	600	No	Register For Quote
AT14A030-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 30,000 WLL	30,000	360"	204"	45°	1016	No	Register For Quote
AT14A030-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 51" Spread, 30,000 WLL	30,000	72"	51"	45°	287	No	Register For Quote
AT14A030-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 60" Spread, 30,000 WLL	30,000	84"	60"	45°	330	No	Register For Quote
AT14A030-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 30,000 WLL	30,000	96"	66"	45°	358	No	Register For Quote
AT14A030-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 30,000 WLL	30,000	120"	78"	45°	418	No	Register For Quote
AT14A030-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 30,000 WLL	30,000	144"	90"	45°	475	No	Register For Quote
AT14A030-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 30,000 WLL	30,000	168"	102"	45°	534	No	Register For Quote
AT14A030-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 30,000 WLL	30,000	180"	108"	45°	564	No	Register For Quote
AT14A030-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 30,000 WLL	30,000	240"	144"	45°	724	No	Register For Quote
AT14A030-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 30,000 WLL	30,000	360"	204"	45°	1180	No	Register For Quote

32,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A032-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 51" Spread, 32,000 WLL	32,000	72"	51"	45°	220	No	Register For Quote
AT14A032-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 60" Spread, 32,000 WLL	32,000	84"	60"	45°	257	No	Register For Quote
AT14A032-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 32,000 WLL	32,000	96"	66"	45°	282	No	Register For Quote
AT14A032-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 32,000 WLL	32,000	120"	78"	45°	334	No	Register For Quote
AT14A032-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 32,000 WLL	32,000	144"	90"	45°	383	No	Register For Quote
AT14A032-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 32,000 WLL	32,000	168"	102"	45°	434	No	Register For Quote
AT14A032-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 32,000 WLL	32,000	180"	108"	45°	460	No	Register For Quote
AT14A032-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 32,000 WLL	32,000	240"	144"	45°	600	No	Register For Quote
AT14A032-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 32,000 WLL	32,000	360"	204"	45°	1016	No	Register For Quote
AT14A032-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 51" Spread, 32,000 WLL	32,000	72"	51"	45°	287	No	Register For Quote
AT14A032-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 60" Spread, 32,000 WLL	32,000	84"	60"	45°	330	No	Register For Quote
AT14A032-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 32,000 WLL	32,000	96"	66"	45°	358	No	Register For Quote
AT14A032-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 32,000 WLL	32,000	120"	78"	45°	418	No	Register For Quote
AT14A032-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 32,000 WLL	32,000	144"	90"	45°	475	No	Register For Quote
AT14A032-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 32,000 WLL	32,000	168"	102"	45°	534	No	Register For Quote
AT14A032-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 32,000 WLL	32,000	180"	108"	45°	564	No	Register For Quote
AT14A032-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 32,000 WLL	32,000	240"	144"	45°	724	No	Register For Quote
AT14A032-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 32,000 WLL	32,000	360"	204"	45°	1180	No	Register For Quote

36,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A036-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 51" Spread, 36,000 WLL	36,000	72"	51"	45°	228	No	Register For Quote
AT14A036-084-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 84" - 60" Spread, 36,000 WLL	36,000	84"	60"	45°	267	No	Register For Quote
AT14A036-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 36,000 WLL	36,000	96"	66"	45°	292	No	Register For Quote
AT14A036-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 36,000 WLL	36,000	120"	78"	45°	343	No	Register For Quote
AT14A036-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 36,000 WLL	36,000	144"	90"	45°	528	No	Register For Quote
AT14A036-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 36,000 WLL	36,000	180"	108"	45°	469	No	Register For Quote
AT14A036-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 36,000 WLL	36,000	240"	144"	45°	608	No	Register For Quote
AT14A036-288-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 288" - 168" Spread, 36,000 WLL	36,000	288"	168"	45°	843	-	Register For Quote
AT14A036-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 36,000 WLL	36,000	360"	204"	45°	1024	No	Register For Quote
AT14A036-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 51" Spread, 36,000 WLL	36,000	72"	51"	45°	333	No	Register For Quote
AT14A036-084SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 84" - 60" Spread, 36,000 WLL	36,000	84"	60"	45°	376	No	Register For Quote
AT14A036-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 36,000 WLL	36,000	96"	66"	45°	406	No	Register For Quote
AT14A036-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 36,000 WLL	36,000	120"	78"	45°	468	No	Register For Quote
AT14A036-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 36,000 WLL	36,000	144"	90"	45°	528	No	Register For Quote
AT14A036-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 36,000 WLL	36,000	180"	108"	45°	618	No	Register For Quote
AT14A036-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 36,000 WLL	36,000	240"	144"	45°	782	No	Register For Quote
AT14A036-288SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 288" - 168" Spread, 36,000 WLL	36,000	288"	168"	45°	1037	No	Register For Quote
AT14A036-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 36,000 WLL	36,000	360"	204"	45°	1248	No	Register For Quote

40,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A040-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 54" Spread, 40,000 WLL	40,000	72"	54"	45°	395	No	Register For Quote
AT14A040-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 40,000 WLL	40,000	96"	66"	45°	439	No	Register For Quote
AT14A040-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 40,000 WLL	40,000	120"	78"	45°	587	No	Register For Quote
AT14A040-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 40,000 WLL	40,000	144"	90"	45°	534	No	Register For Quote
AT14A040-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 40,000 WLL	40,000	168"	102"	45°	583	No	Register For Quote
AT14A040-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 40,000 WLL	40,000	180"	108"	45°	682	No	Register For Quote
AT14A040-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 40,000 WLL	40,000	240"	144"	45°	843	No	Register For Quote
AT14A040-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 40,000 WLL	40,000	360"	204"	45°	1456	No	Register For Quote
AT14A040-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 40,000 WLL	40,000	480"	276"	45°	2187	No	Register For Quote
AT14A040-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 54" Spread, 40,000 WLL	40,000	72"	54"	45°	240	-	Register For Quote
AT14A040-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 40,000 WLL	40,000	96"	66"	45°	280	No	Register For Quote
AT14A040-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 40,000 WLL	40,000	120"	78"	45°	321	No	Register For Quote
AT14A040-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 40,000 WLL	40,000	144"	90"	45°	361	No	Register For Quote
AT14A040-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 40,000 WLL	40,000	168"	102"	45°	402	No	Register For Quote
AT14A040-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 40,000 WLL	40,000	180"	108"	45°	497	No	Register For Quote
AT14A040-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 40,000 WLL	40,000	240"	144"	45°	640	No	Register For Quote
AT14A040-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 40,000 WLL	40,000	360"	204"	45°	1216	No	Register For Quote
AT14A040-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 40,000 WLL	40,000	480"	276"	45°	1850	No	Register For Quote

46,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A046-072-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 72" - 54" Spread, 46,000 WLL	46,000	72"	54"	50°	269	No	Register For Quote
AT14A046-096-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 96" - 66" Spread, 46,000 WLL	46,000	96"	66"	45°	320	No	Register For Quote
AT14A046-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 46,000 WLL	46,000	120"	78"	45°	371	Yes	Register For Quote
AT14A046-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 90" Spread, 46,000 WLL	46,000	144"	90"	45°	420	No	Register For Quote
AT14A046-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 46,000 WLL	46,000	168"	102"	45°	471	No	Register For Quote
AT14A046-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 46,000 WLL	46,000	180"	108"	45°	496	No	Register For Quote
AT14A046-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 46,000 WLL	46,000	240"	144"	45°	750	No	Register For Quote
AT14A046-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 46,000 WLL	46,000	360"	204"	45°	1216	No	Register For Quote
AT14A046-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 46,000 WLL	46,000	480"	276"	45°	1850	No	Register For Quote
AT14A046-072SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 72" - 54" Spread, 46,000 WLL	46,000	72"	54"	50°	374	No	Register For Quote
AT14A046-096SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 96" - 66" Spread, 46,000 WLL	46,000	96"	66"	45°	431	No	Register For Quote
AT14A046-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 46,000 WLL	46,000	120"	78"	45°	573	No	Register For Quote
AT14A046-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 90" Spread, 46,000 WLL	46,000	144"	90"	45°	631	No	Register For Quote
AT14A046-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 46,000 WLL	46,000	168"	102"	45°	691	No	Register For Quote
AT14A046-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 46,000 WLL	46,000	180"	108"	45°	721	No	Register For Quote
AT14A046-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 46,000 WLL	46,000	240"	144"	45°	997	No	Register For Quote
AT14A046-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 46,000 WLL	46,000	360"	204"	45°	1508	No	Register For Quote
AT14A046-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 46,000 WLL	46,000	480"	276"	45°	2187	No	Register For Quote

50,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A050-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 50,000 WLL	50,000	120"	78"	45°	597	No	Register For Quote
AT14A050-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 96" Spread, 50,000 WLL	50,000	144"	96"	45°	730	No	Register For Quote
AT14A050-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 50,000 WLL	50,000	180"	108"	45°	814	No	Register For Quote
AT14A050-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 50,000 WLL	50,000	240"	144"	45°	1033	No	Register For Quote
AT14A050-288SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 288" - 168" Spread, 50,000 WLL	50,000	288"	168"	45°	1190	No	Register For Quote
AT14A050-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 50,000 WLL	50,000	360"	204"	45°	1618	No	Register For Quote
AT14A050-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 50,000 WLL	50,000	480"	276"	45°	2525	Yes	Register For Quote
AT14A050-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 50,000 WLL	50,000	120"	78"	45°	436	No	Register For Quote
AT14A050-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 96" Spread, 50,000 WLL	50,000	144"	96"	45°	495	No	Register For Quote
AT14A050-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam 102” – 168” Spread, 50,000 WLL	50,000	168"	102"	45	439	No	Register For Quote
AT14A050-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 50,000 WLL	50,000	180"	108"	45°	562	No	Register For Quote
AT14A050-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 50,000 WLL	50,000	240"	144"	45°	811	No	Register For Quote
AT14A050-288-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 288" - 168" Spread, 50,000 WLL	50,000	288"	168"	45°	946	No	Register For Quote
AT14A050-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 50,000 WLL	50,000	360"	204"	45°	1287	No	Register For Quote
AT14A050-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 50,000 WLL	50,000	480"	276"	45°	2140	No	Register For Quote

60,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A060-108-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 108" - 72" Spread, 60,000 WLL	60,000	108"	72"	45°	369	No	Register For Quote
AT14A060-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 60,000 WLL	60,000	120"	78"	45°	390	No	Register For Quote
AT14A060-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 96" Spread, 60,000 WLL	60,000	144"	96"	45°	495	No	Register For Quote
AT14A060-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 60,000 WLL	60,000	168"	102"	45°	537	No	Register For Quote
AT14A060-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 60,000 WLL	60,000	180"	108"	45°	562	No	Register For Quote
AT14A060-216-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 216" - 132" Spread, 60,000 WLL	60,000	216"	132"	45°	752	No	Register For Quote
AT14A060-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 60,000 WLL	60,000	240"	144"	45°	811	No	Register For Quote
AT14A060-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 60,000 WLL	60,000	360"	204"	45°	1448	No	Register For Quote
AT14A060-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 60,000 WLL	60,000	480"	276"	45°	2140	No	Register For Quote
AT14A060-108SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 108" - 72" Spread, 60,000 WLL	60,000	108"	72"	45°	710	No	Register For Quote
AT14A060-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 60,000 WLL	60,000	120"	78"	45°	738	No	Register For Quote
AT14A060-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 96" Spread, 60,000 WLL	60,000	144"	96"	45°	858	No	Register For Quote
AT14A060-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 60,000 WLL	60,000	168"	102"	45°	800	No	Register For Quote
AT14A060-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 60,000 WLL	60,000	180"	108"	45°	947	No	Register For Quote
AT14A060-216SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 216" - 132" Spread, 60,000 WLL	60,000	216"	132"	45°	1160	No	Register For Quote
AT14A060-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 60,000 WLL	60,000	240"	144"	45°	1232	No	Register For Quote
AT14A060-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 60,000 WLL	60,000	360"	204"	45°	1942	No	Register For Quote
AT14A060-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 60,000 WLL	60,000	480"	276"	45°	2707	No	Register For Quote

67,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A067-120SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 120" - 78" Spread, 67,000 WLL	67,000	120"	78"	45°	738	No	Register For Quote
AT14A067-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 96" Spread, 67,000 WLL	67,000	144"	96"	45°	858	No	Register For Quote
AT14A067-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 102" Spread, 67,000 WLL	67,000	168"	102"	45°	800	No	Register For Quote
AT14A067-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 108" Spread, 67,000 WLL	67,000	180"	108"	45°	947	No	Register For Quote
AT14A067-216SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 216" - 132" Spread, 67,000 WLL	67,000	216"	132"	45°	1160	No	Register For Quote
AT14A067-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 67,000 WLL	67,000	240"	144"	45°	1232	No	Register For Quote
AT14A067-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 204" Spread, 67,000 WLL	67,000	360"	204"	45°	1942	No	Register For Quote
AT14A067-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 67,000 WLL	67,000	480"	276"	45°	2707	No	Register For Quote
AT14A067-120-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 120" - 78" Spread, 67,000 WLL	67,000	120"	78"	45°	390	No	Register For Quote
AT14A067-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 96" Spread, 67,000 WLL	67,000	144"	96"	45°	495	No	Register For Quote
AT14A067-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 102" Spread, 67,000 WLL	67,000	168"	102"	45°	537	No	Register For Quote
AT14A067-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 108" Spread, 67,000 WLL	67,000	180"	108"	45°	562	No	Register For Quote
AT14A067-216-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 216" - 132" Spread, 67,000 WLL	67,000	216"	132"	45°	752	No	Register For Quote
AT14A067-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 67,000 WLL	67,000	240"	144"	45°	811	No	Register For Quote
AT14A067-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 204" Spread, 67,000 WLL	67,000	360"	204"	45°	1448	No	Register For Quote
AT14A067-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 67,000 WLL	67,000	480"	276"	45°	2140	No	Register For Quote

70,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A070-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 70,000 WLL	70,000	240"	144"	45°	952	No	Register For Quote
AT14A070-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 70,000 WLL	70,000	480"	276"	45°	2270	No	Register For Quote
AT14A070-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 70,000 WLL	70,000	240"	144"	45°	1373	No	Register For Quote
AT14A070-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 70,000 WLL	70,000	480"	276"	45°	2837	No	Register For Quote

80,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A080-144SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 144" - 96" Spread, 80,000 WLL	80,000	144"	96"	45°	1229	No	Register For Quote
AT14A080-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 108" Spread, 80,000 WLL	80,000	168"	108"	45°	1308	No	Register For Quote
AT14A080-180SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 180" - 114" Spread, 80,000 WLL	80,000	180"	114"	45°	1332	No	Register For Quote
AT14A080-192SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 192" - 120" Spread, 80,000 WLL	80,000	192"	120"	45°	1438	No	Register For Quote
AT14A080-216SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 216" - 132" Spread, 80,000 WLL	80,000	216"	132"	45°	1466	No	Register For Quote
AT14A080-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 80,000 WLL	80,000	240"	144"	45°	1702	No	Register For Quote
AT14A080-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 216" Spread, 80,000 WLL	80,000	360"	216"	45°	2323	No	Register For Quote
AT14A080-144-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 144" - 96" Spread, 80,000 WLL	80,000	144"	96"	45°	711	No	Register For Quote
AT14A080-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 108" Spread, 80,000 WLL	80,000	168"	108"	45°	771	No	Register For Quote
AT14A080-180-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 180" - 114" Spread, 80,000 WLL	80,000	180"	114"	45°	785	No	Register For Quote
AT14A080-192-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 192" - 120" Spread, 80,000 WLL	80,000	192"	120"	45°	882	No	Register For Quote
AT14A080-216-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 216" - 132" Spread, 80,000 WLL	80,000	216"	132"	45°	890	No	Register For Quote
AT14A080-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 80,000 WLL	80,000	240"	144"	45°	1107	No	Register For Quote
AT14A080-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 216" Spread, 80,000 WLL	80,000	360"	216"	45°	1633	No	Register For Quote

90,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A090-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 90,000 WLL	90,000	480"	276"	60°	2268	No	Register For Quote
AT14A090-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 90,000 WLL	90,000	480"	276"	60°	2956	No	Register For Quote

100,000 lbs

Model	Top Rigging Included	Description	WLL (lbs)	Max Spread	Min. Spread	Sling Angle	Weight (lbs.)	In Stock	Buy Online
AT14A100-168SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 168" - 108" Spread, 100,000 WLL	100,000	168"	108"	45°	1317	No	Register For Quote
AT14A100-192SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 192" - 120" Spread, 100,000 WLL	100,000	192"	120"	45°	1455	No	Register For Quote
AT14A100-240SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 240" - 144" Spread, 100,000 WLL	100,000	240"	144"	45°	1875	No	Register For Quote
AT14A100-360SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 360" - 216" Spread, 100,000 WLL	100,000	360"	216"	45°	2733	No	Register For Quote
AT14A100-480SPA Telescopic Spreader Beam	Yes	Telescopic Spreader Beam, 480" - 276" Spread, 100,000 WLL	100,000	480"	276"	60°	3176	No	Register For Quote
AT14A100-168-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 168" - 108" Spread, 100,000 WLL	100,000	168"	108"	45°	780	No	Register For Quote
AT14A100-192-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 192" - 120" Spread, 100,000 WLL	100,000	192"	120"	45°	915	No	Register For Quote
AT14A100-240-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 240" - 144" Spread, 100,000 WLL	100,000	240"	144"	45°	1060	No	Register For Quote
AT14A100-360-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 360" - 216" Spread, 100,000 WLL	100,000	360"	216"	45°	1798	No	Register For Quote
AT14A100-480-PA Telescopic Spreader Beam	No	Telescopic Spreader Beam, 480" - 276" Spread, 100,000 WLL	100,000	480"	276"	60°	2266	No	Register For Quote

Type	Telescopic with or without Sling
WLL Range	2,000 - 100,000 LBS
Min Extension Range	Varies
Max Extension Range	Varies

Contact Info

824 Fontana Blvd

Havelock, NC 28532 USA

Sales: 1-800-258-7324

All Other Inquiries: 1-252-447-7155

Fax: 1-800-892-3273

[email protected]

Facebook | LinkedIn | Instagram | YouTube

Newsletter Sign up

Tandemloc Newsletter

Sign up for the latest news and info on Tandemloc and our Products.

Request A Quote

Request a Quote

Need something a little more custom? Click below and request a quote today.

Register For Quote

Copyright © 2024 Tandemloc, Inc. All rights reserved. |
Privacy Policy | Terms of Use | Return Policy | Warranty Information | Disclaimer |
Website Designed by Foremost Media®
