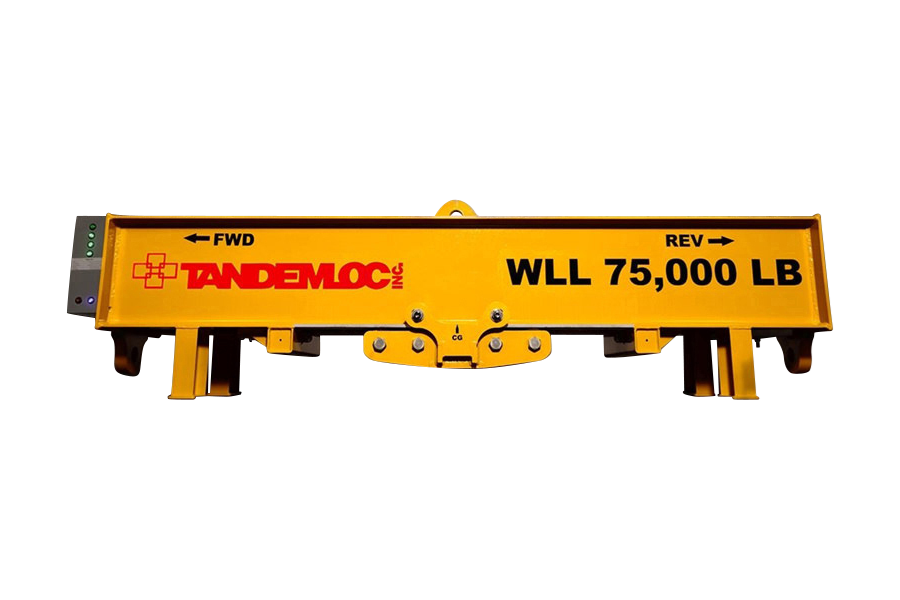

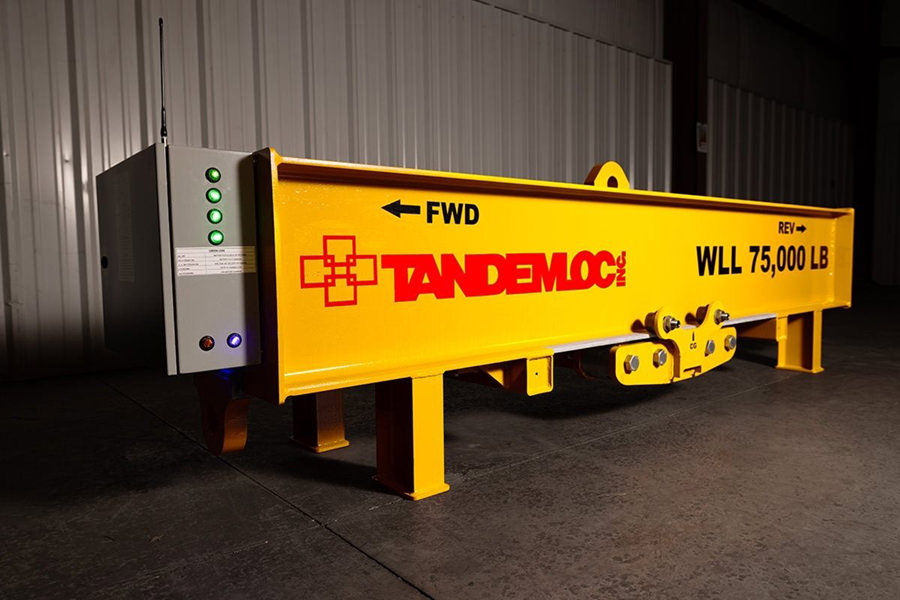

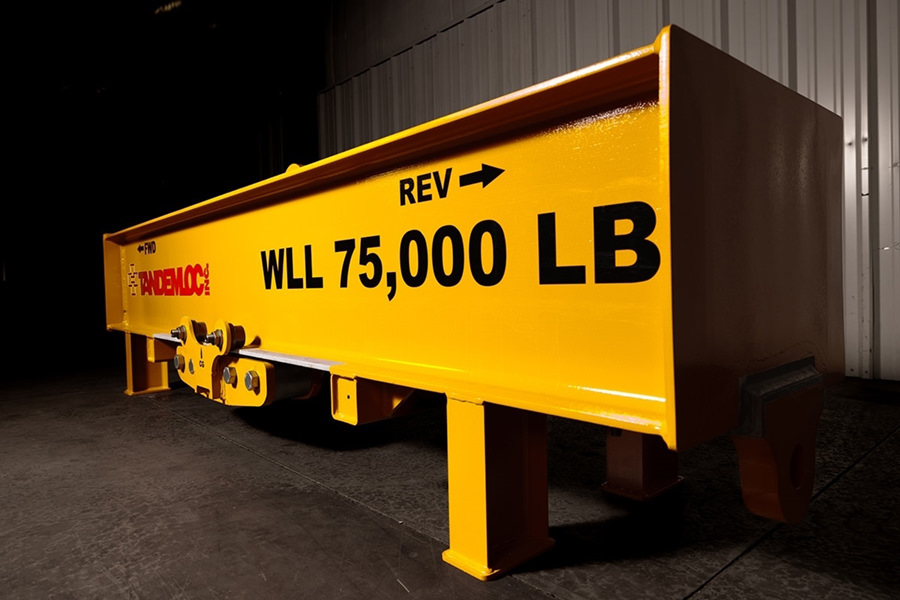

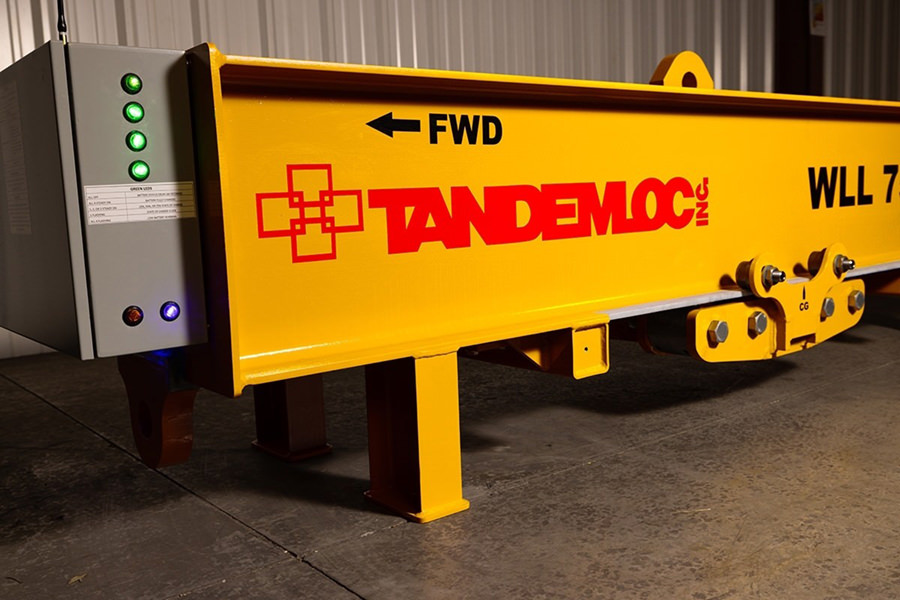

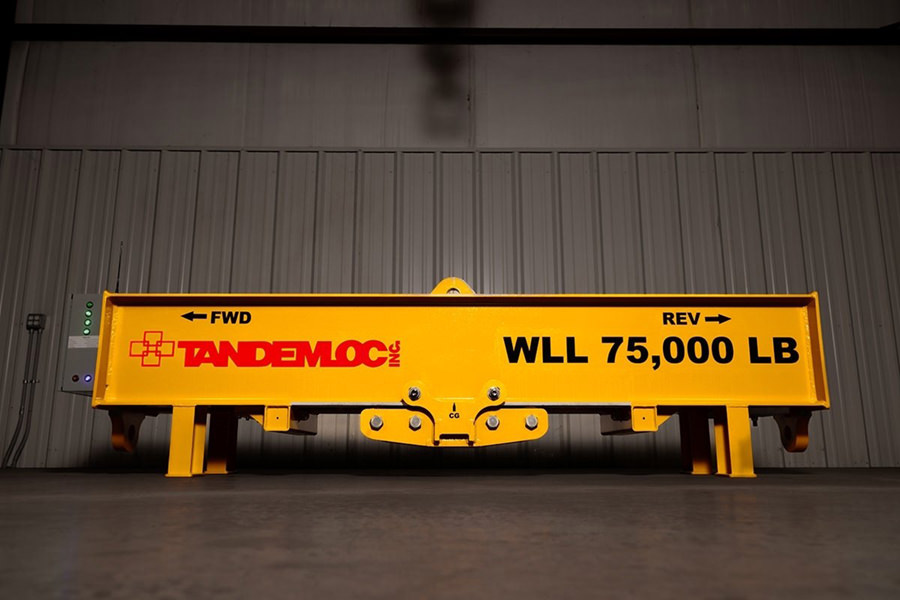

AZ34A00-00-PA Electric Load Leveling Lift Beam

A customer needed to lift multiple components while the center of gravity varies from one component to the next, so our engineering team created the AZ34A00-00A-PA Motorized Load Leveler. This product was designed to meet a specific application. However, our engineering department can customize this design to meet your requirements.

Key Features:

• Designed to lift loads with pick points at 114 inches apart
• Compact footprint of roughly 30 inches by 123 inches
• Rugged self-locking drive train

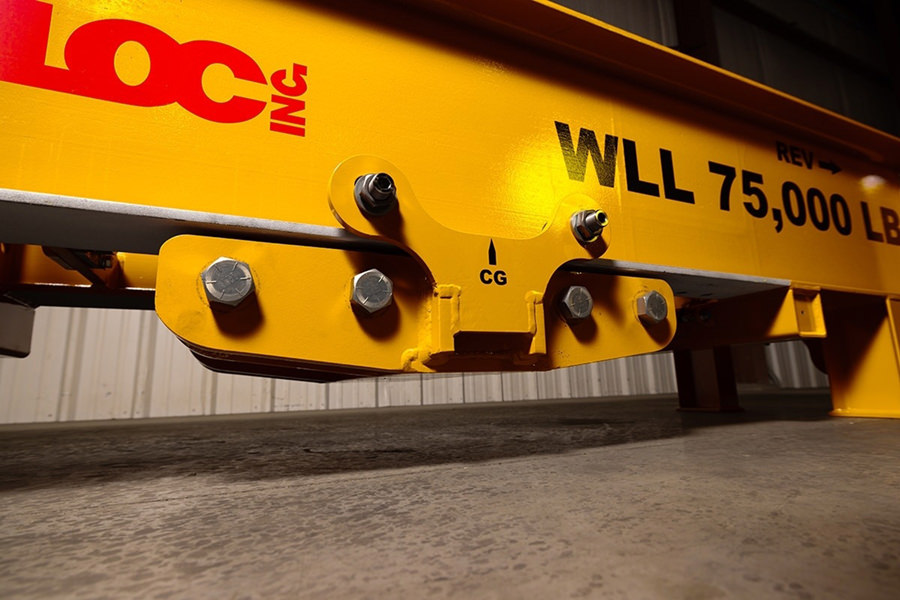

• Top pad eye adjustment capabilities along its 20-inch range of travel
• High-capacity lithium battery pack
• Industrial Wireless Remote Control

Notes:

1. Part No.: AZ34A00-00A-PA, ELECTRIC LOAD LEVELER
2. WLL: 75,000 LB.
3. PROOF TESTED TO 125% (93,750 LB.) AND CERTIFIED
4. STANDARDS: Specification #EAD21000A APPLIES
5. FINISH: SANDBLAST, PRIME AND PAINT SW6883 RAUCOUS ORANGE
6. CALCULATED WEIGHT: 2,065 LB.
7. DESIGNED AND MANUFACTURED TO MEET OR EXCEED ASME B30.20 AND BTH-1, DESIGN CATEGORY B, SERVICE CLASS 0.
